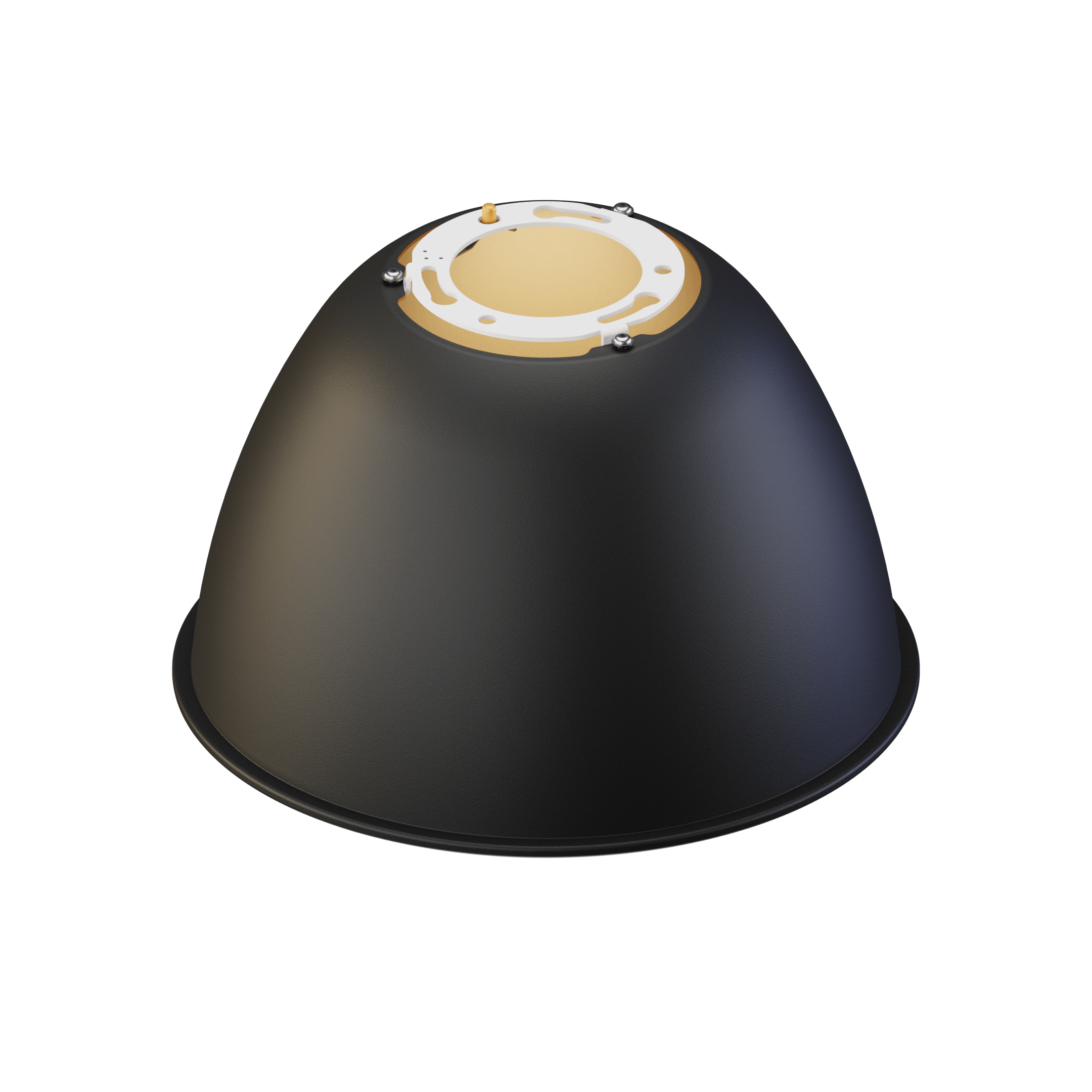

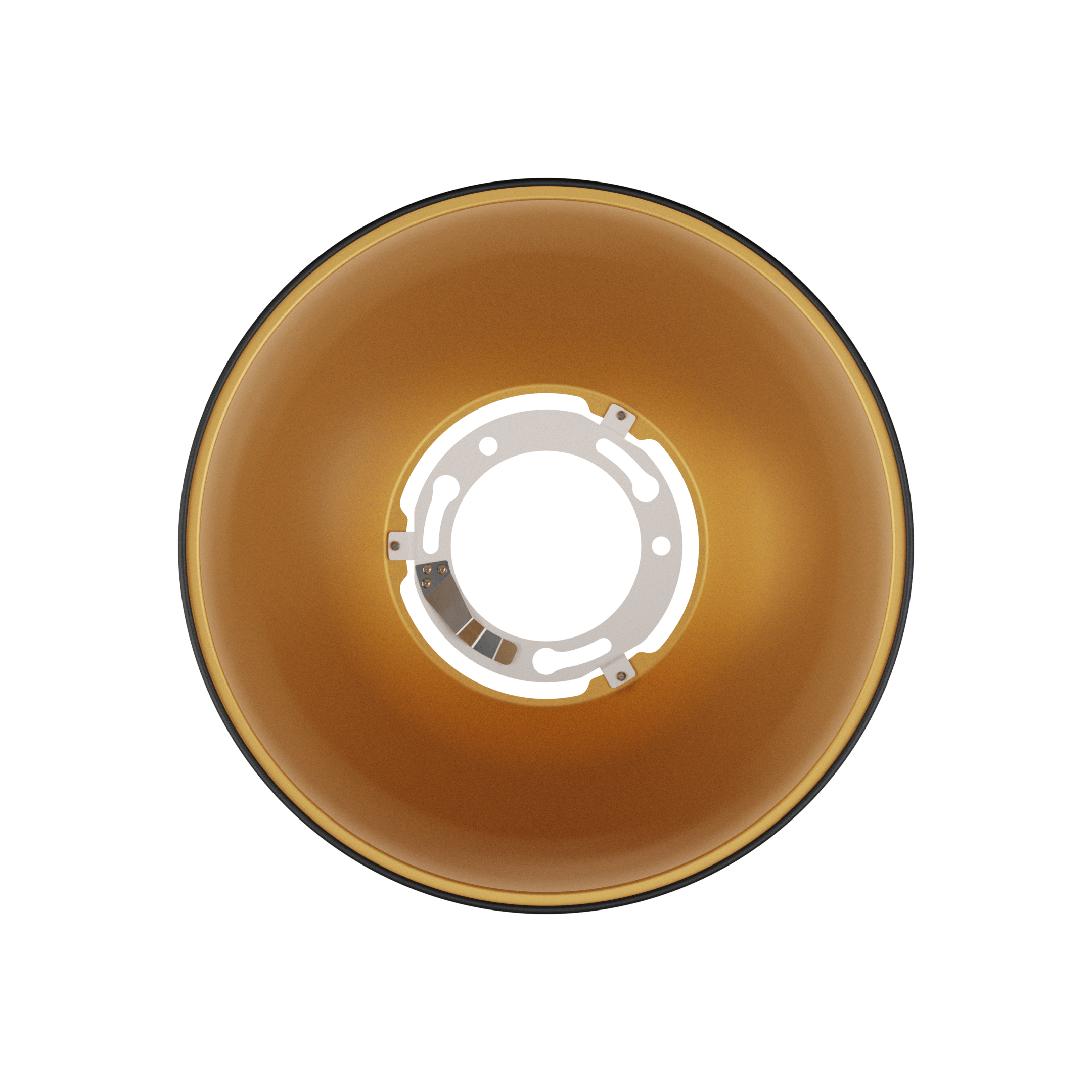

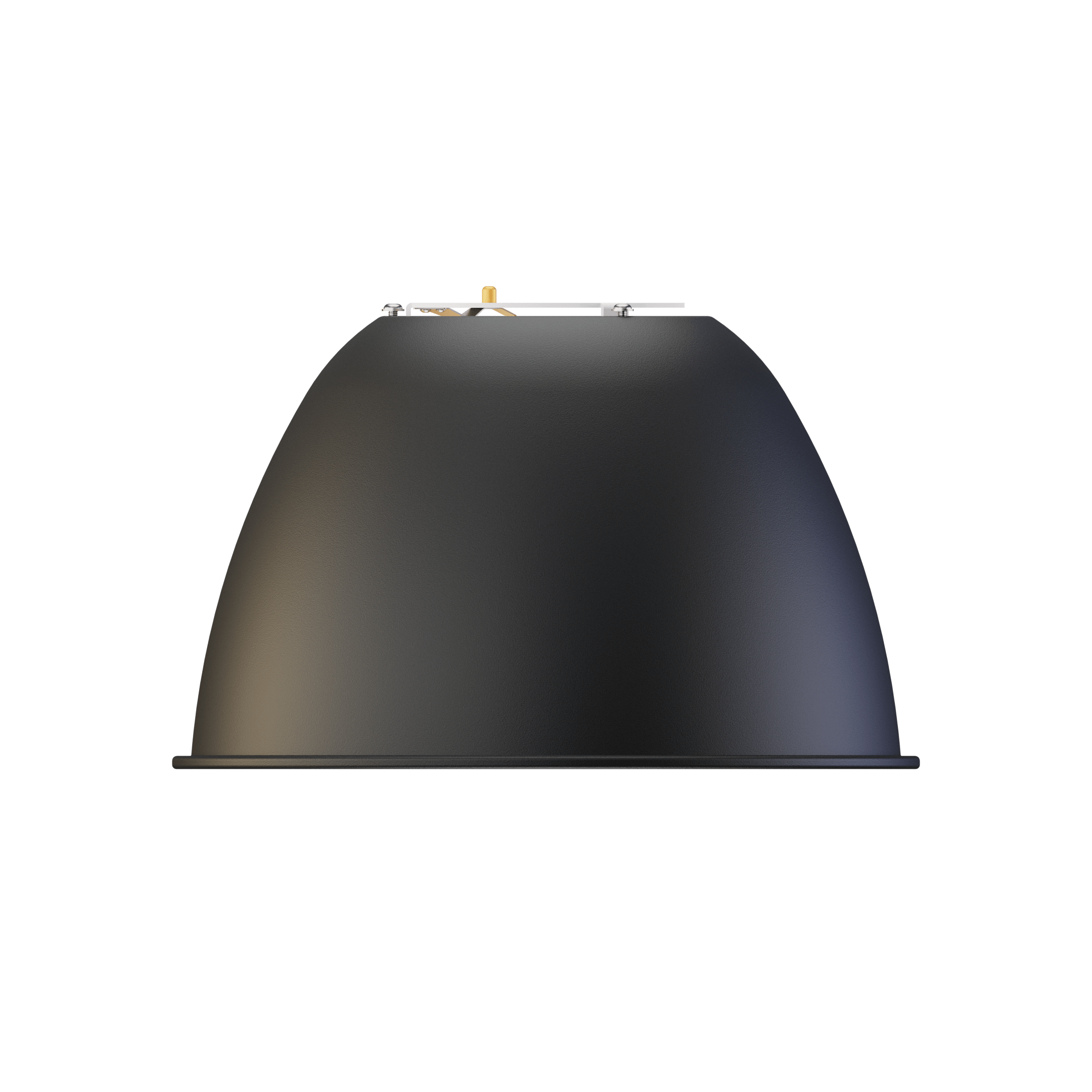

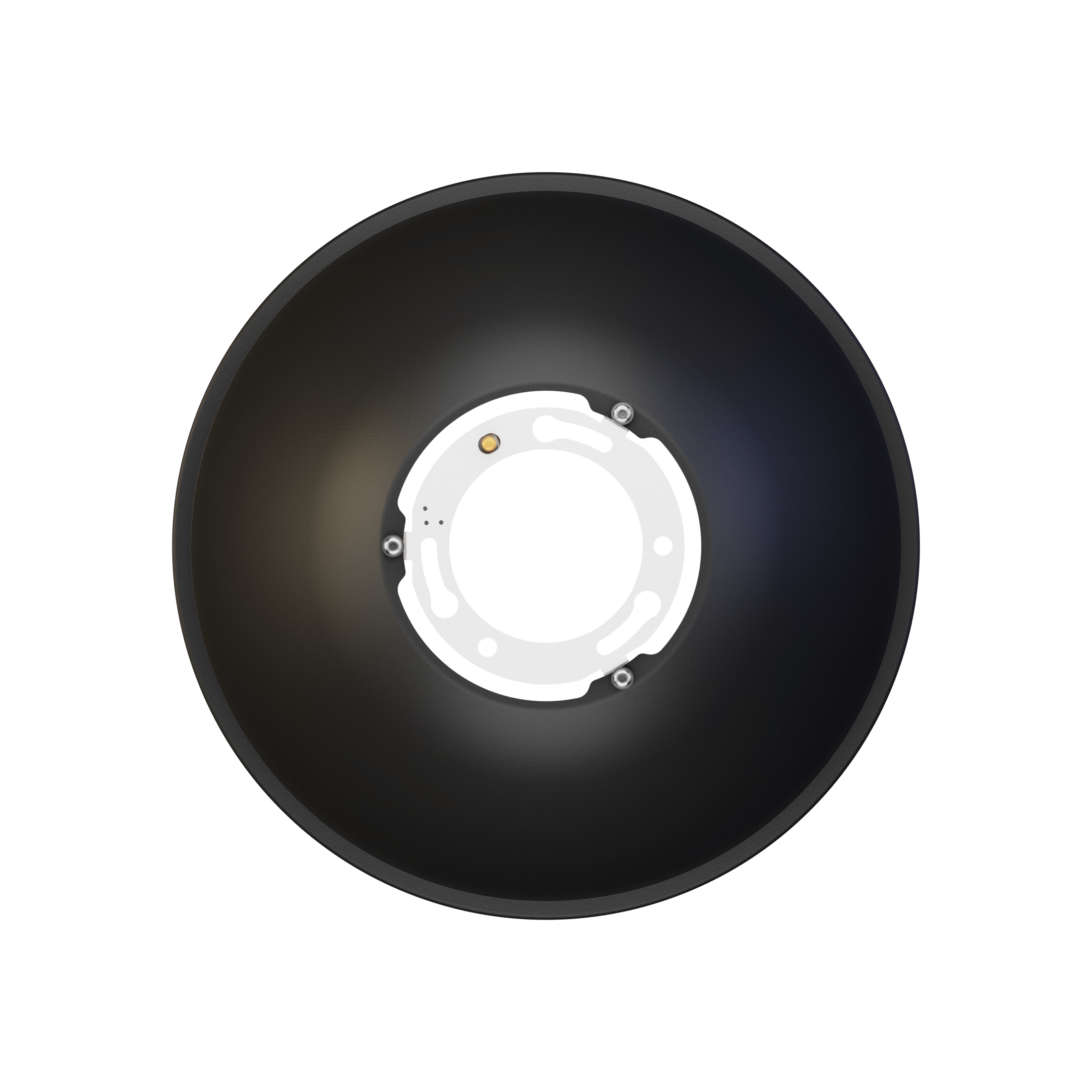

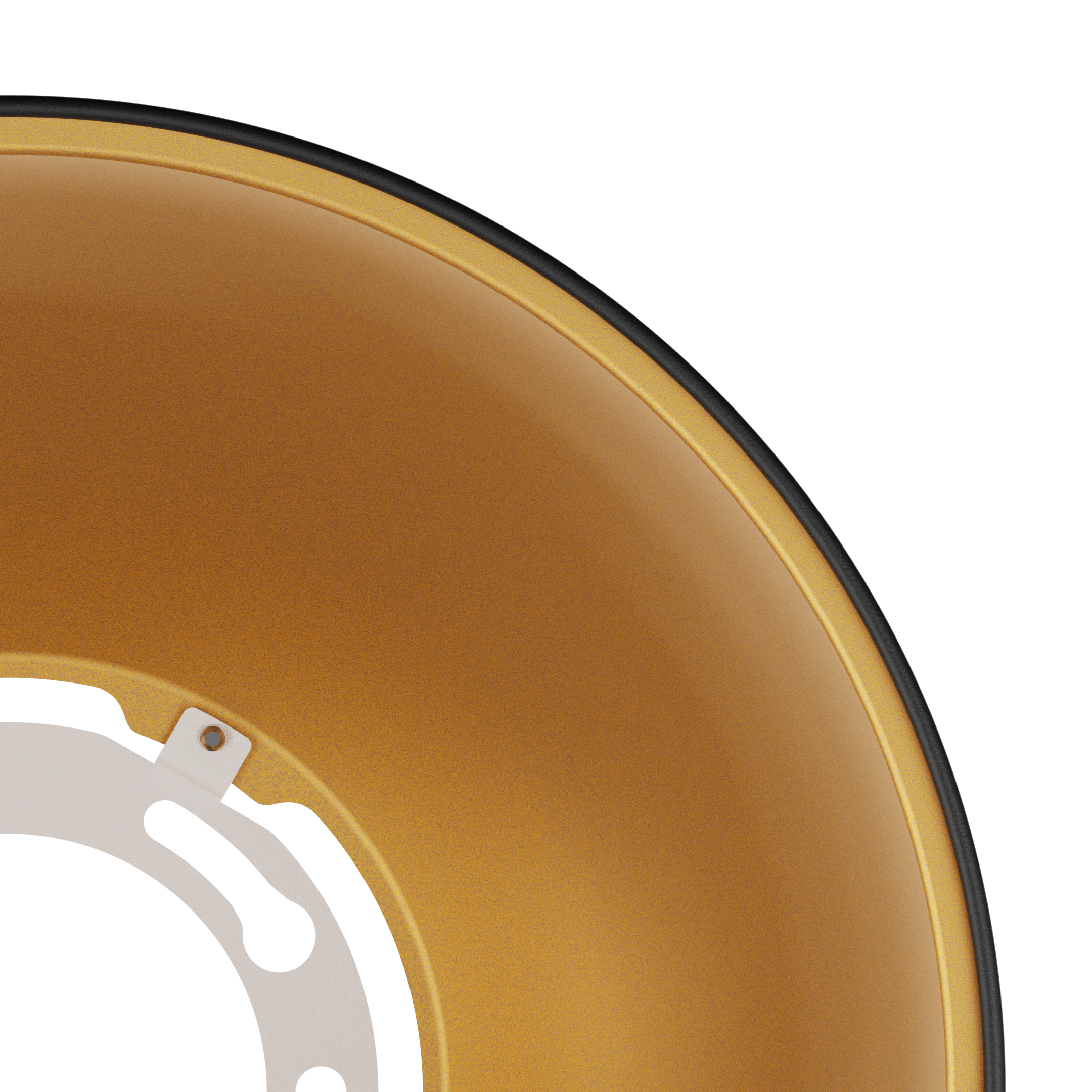

Aluminum Bell 12"/31cm Reflector
Cosmetic Reflector - Black/White
General
The optional reflector is available to create a traditional high-bay aesthetic. However, these reflectors are not needed and their installation does not substantially alter the light distribution. The Filamento lamp has integral optics that create a cutoff at 50°, eliminating glare so an external reflector is not required.
- Solid aluminum reflector
- Reflectors are vented to allow for airflow
- Compatible with all ADP mounting bases
- Compatible with all mogul base lamps
- Easy to install - Simply twist and lock assembly to ADP mounting bases, no tools required
- Optional diffuser, drop lens, wireguard accessories
- Matching ADP mounting bases are sold separately
Mechanical
- 0.36 kg / 0.8 lb
- Ø 12.32" (313mm) x 7.68" (195mm)
- Solid aluminum body
- Black Exterior/Gold Interior
- Inquire for custom colors
P/N | Diameter | Shape | Exterior/Interior | Spec | ||||
---|---|---|---|---|---|---|---|---|
| 12"/31cm | Aluminum Bell | Black/Gold |
-
|
|
|||
|
-
|
P/N | Diameter | Shape | Exterior/Interior | Spec | ||||
---|---|---|---|---|---|---|---|---|
| 12"/31cm | Aluminum Bell | Black/Gold |
-
|
|
|||
|
-
|
P/N | Diameter | Shape | Exterior/Interior | Spec | ||||
---|---|---|---|---|---|---|---|---|
| 12"/31cm | Aluminum Bell | Black/Gold |
-
|
|
|||
|
-
|
P/N | Diameter | Shape | Exterior/Interior | Spec | ||||
---|---|---|---|---|---|---|---|---|
| 12"/31cm | Aluminum Bell | Black/Gold |
-
|
|
|||
|
-
|
