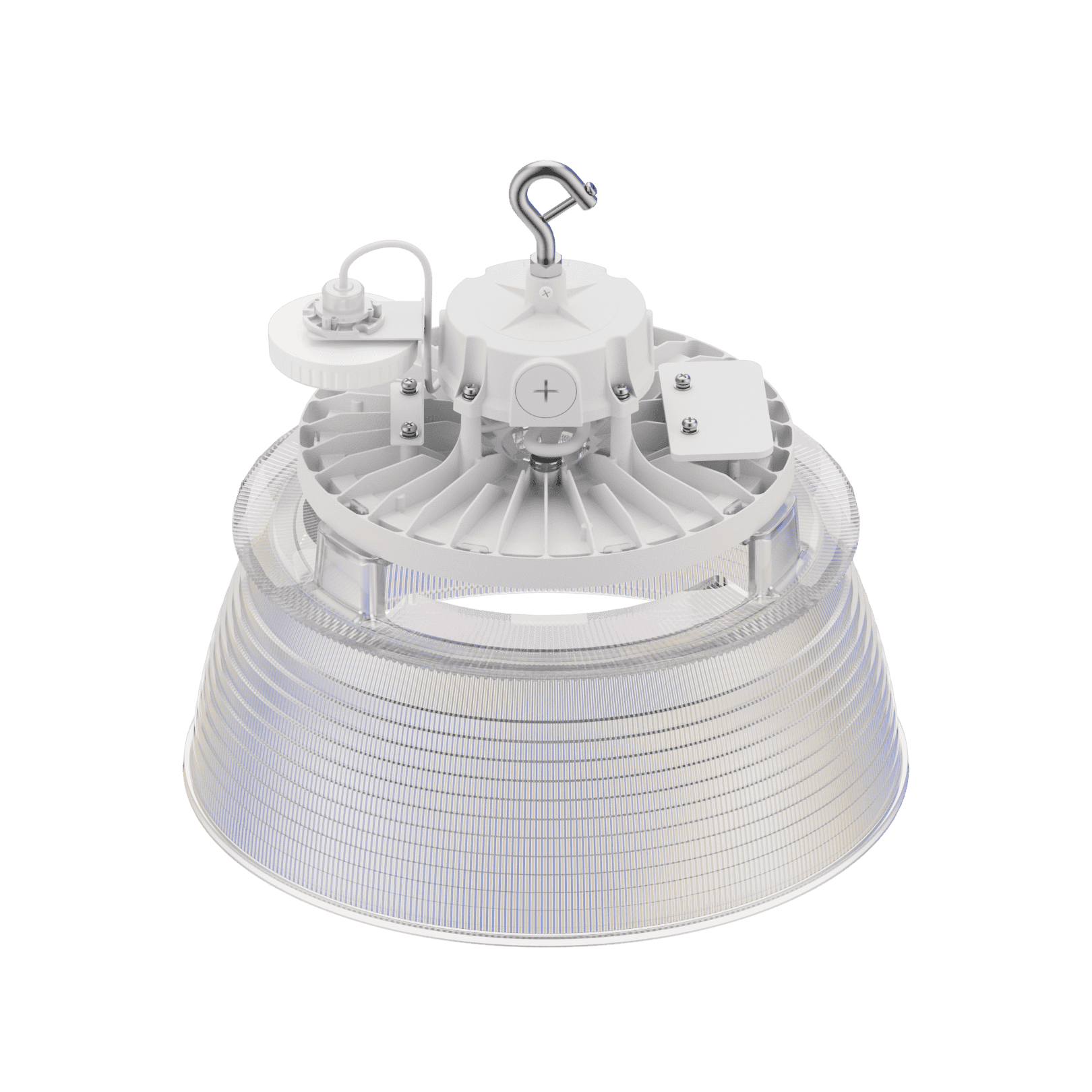

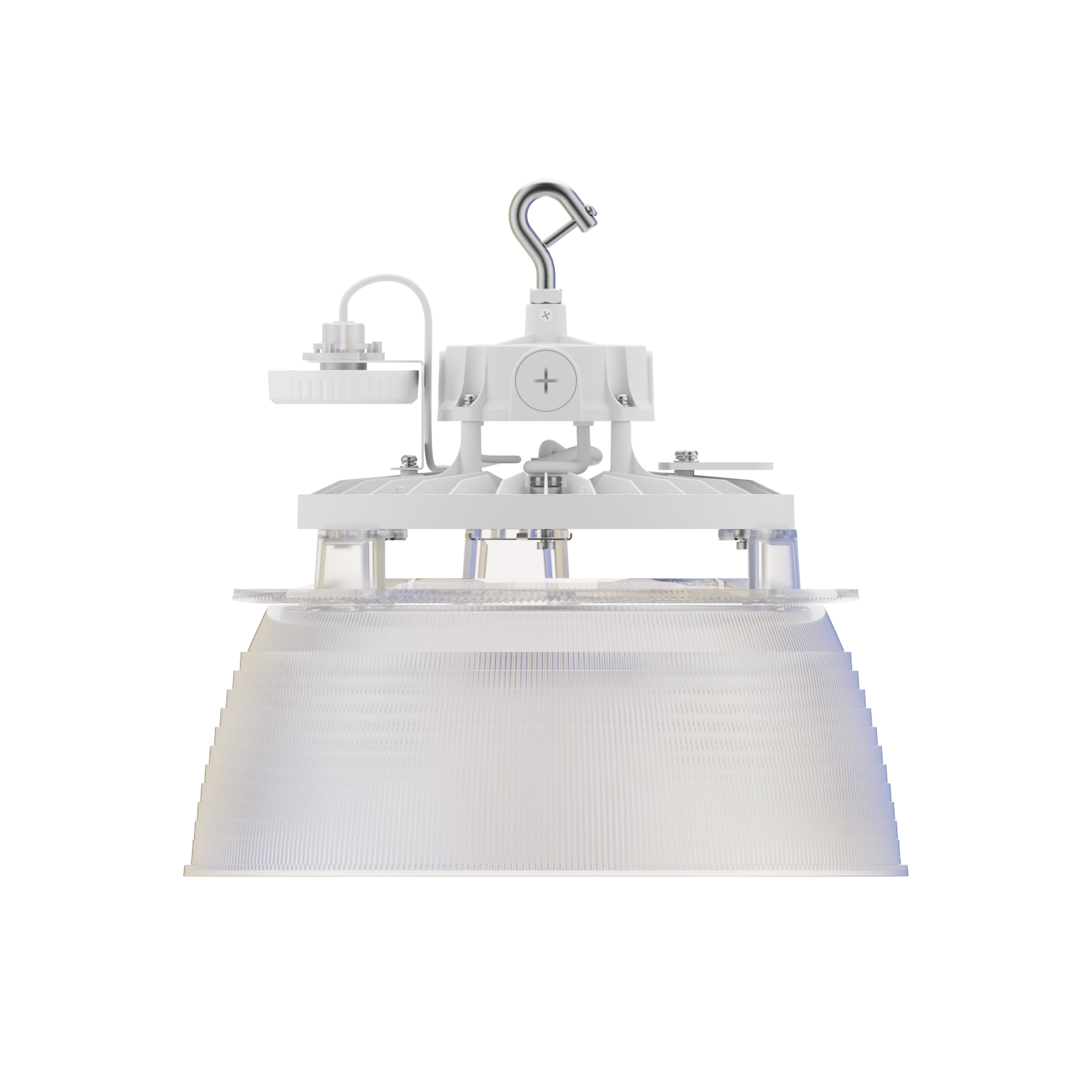

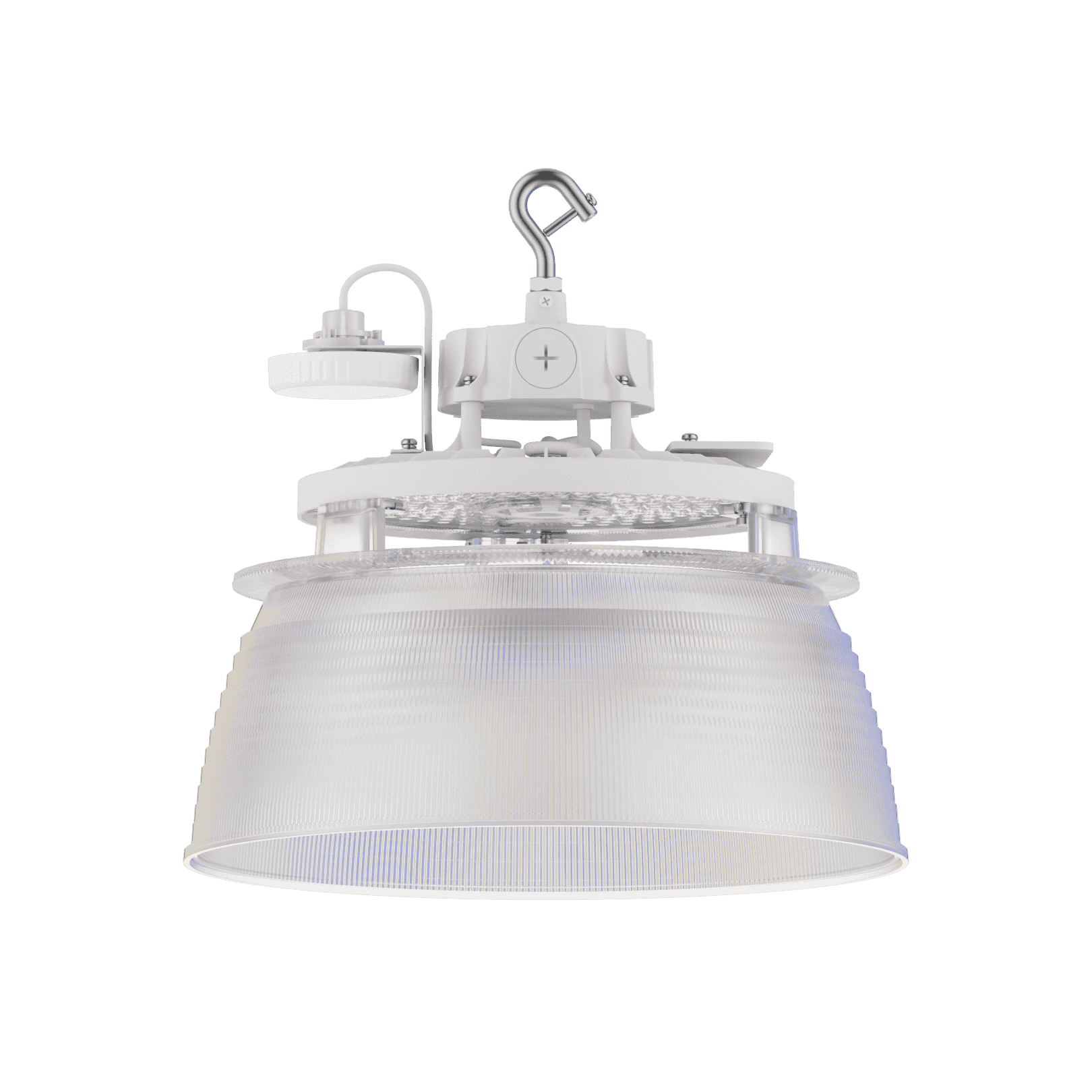

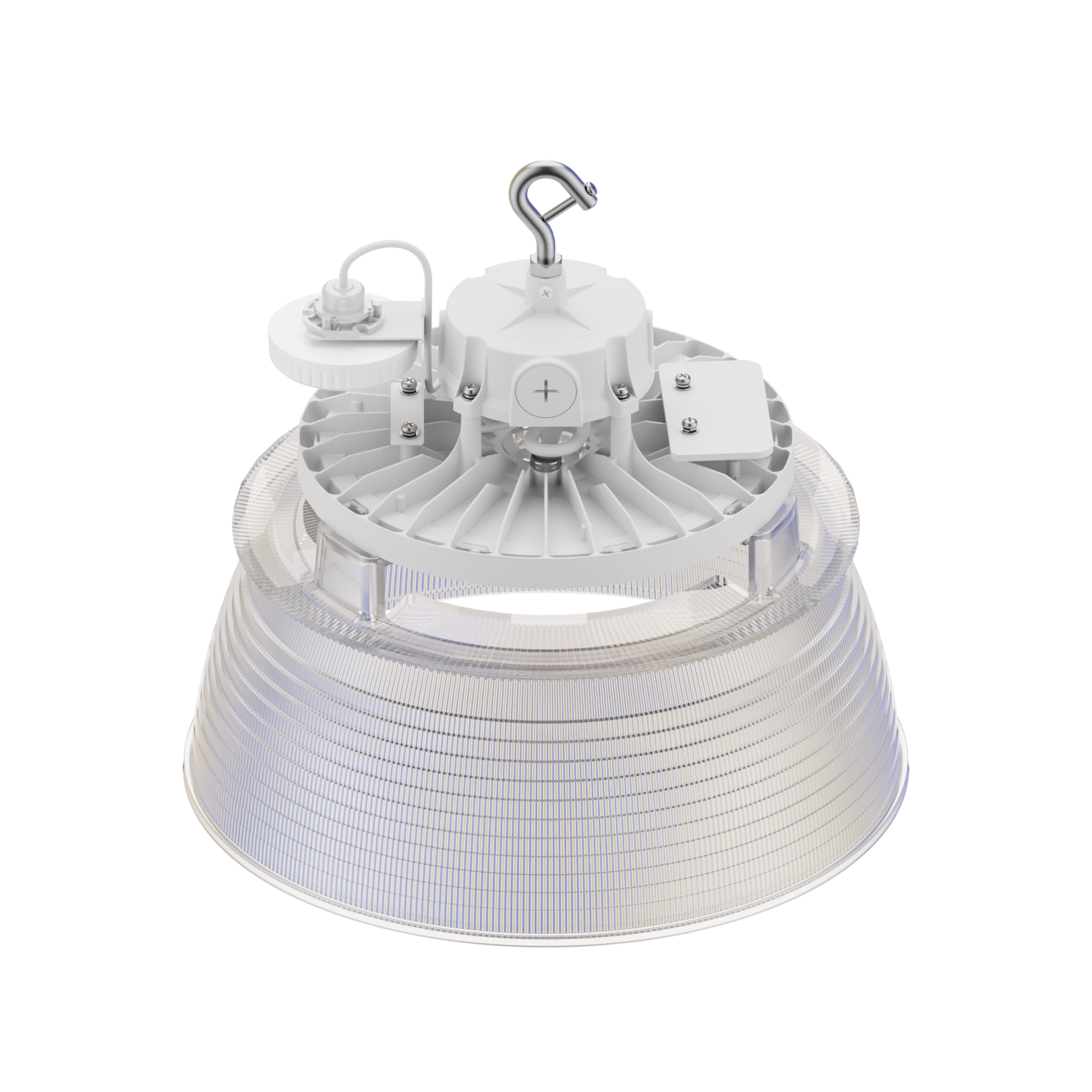

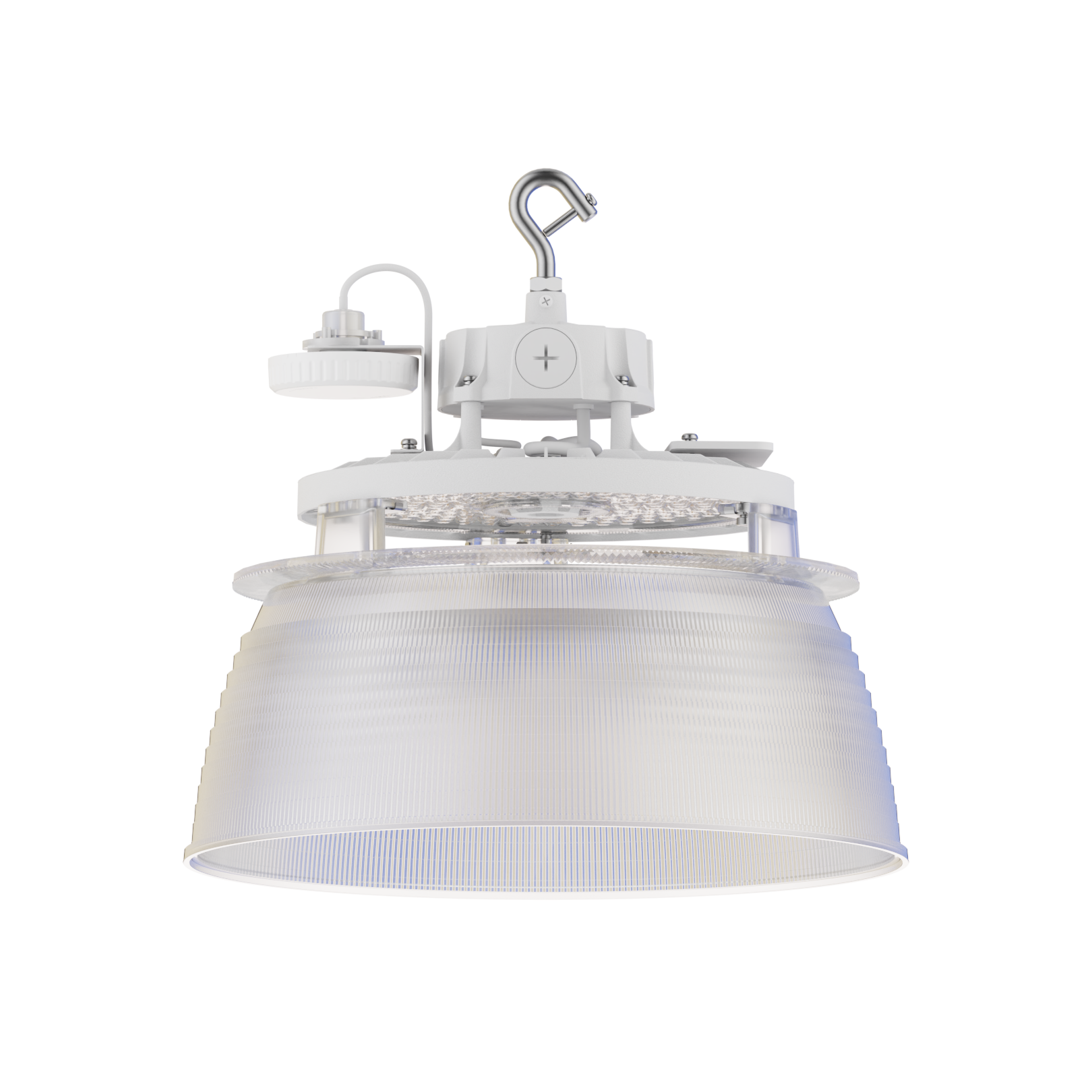

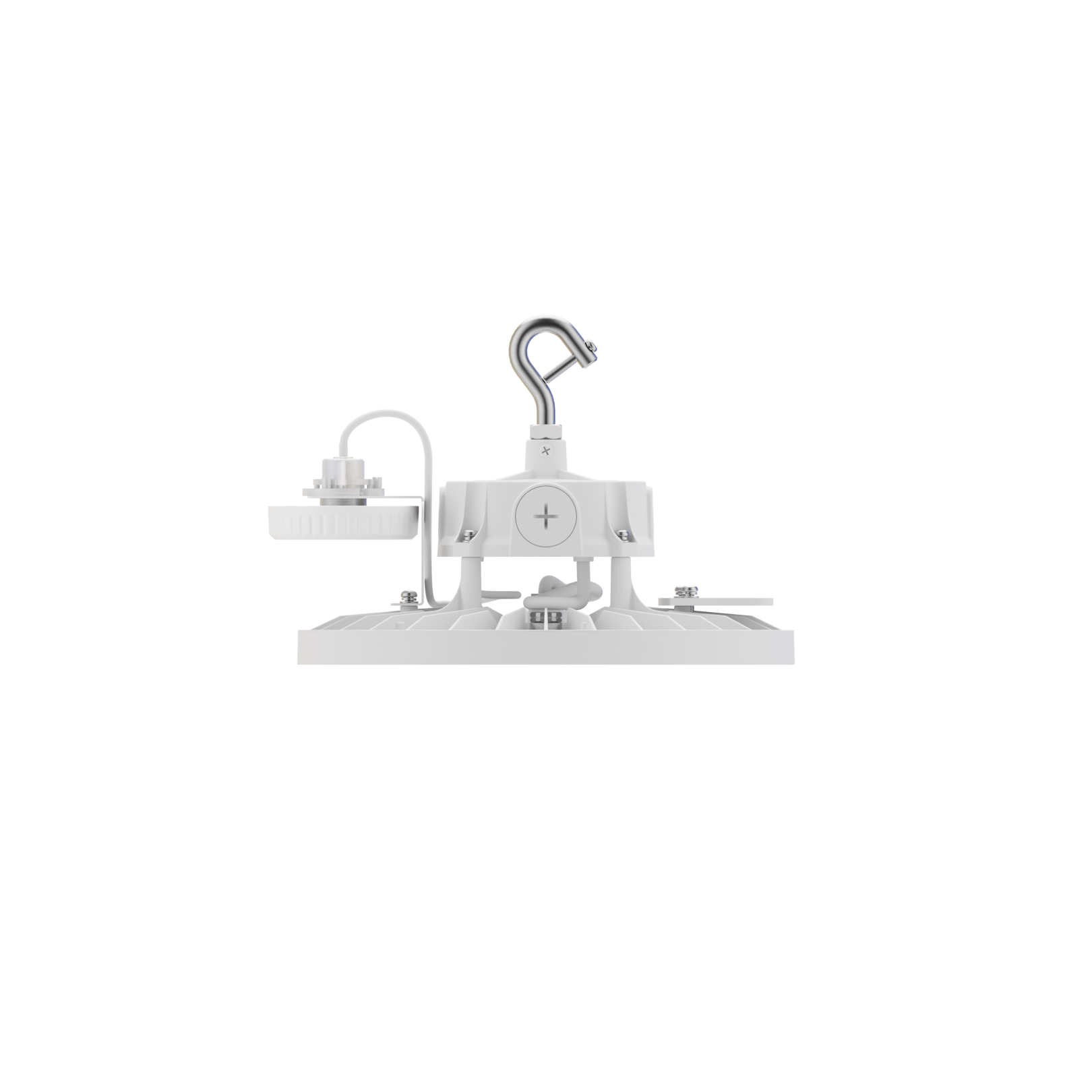

RH1 High Efficency High Bay

DRAFT [CONFIDENTIAL]

Applications

Retail
Warehousing
Manufacturing

General

Up to 28,893 Lumens, 150W, 193 L/W
Key Retail Features:
- 125W, 138W also available
- Low Glare UGR<20
- 10% Uplight to illuminate ceilings
- Wide distribution to illuminate vertical surfaces (walls, racks)
- 80 CRI Standard, High CRI optional
120-277 VAC
Wireless and non-wireless control options
Seven Years warranty
Ten Years warranty optional

World Wide Certifications [Pending]

UL, DLC Premium, CE, BSMI
IP65 / UL wet listed

Control Options

Wireless:
- Synapse wireless
Local Fixture Control:
- 0-10V control
Dims to 10% then to off

Mechanical

7.93 lbs / 3.60 kg
1.5 m / 4.9 ft Safety Harness
2.0 m / 6.6 ft Jack Chain
1.8 m / 6.0 ft Electrical Cable
Ø 15.24" (387mm) x 12.01" (305mm)

Electrical

VS: 120-277 VAC, 50-60Hz
<1% Flicker
PF > 0.9, THD<20%
Surge: 6 kV (L-N), 6kV (L-G, N-G)

Amps @ Line Voltage (VAC)
	120V	220V	240V	277V
125W	1.04A	0.57A	0.52A	0.45A
138W	1.15A	0.63A	0.58A	0.50A
150W	1.25A	0.68A	0.63A	0.54A

CRI	Power	2700K	3000K	3500K	4000K	5000K
80	125W	-	-	-	24,844	24,844
	138W	-	-	-	27,187	27,187
	150W	-	-	-	28,893	28,893

Name	Media
RH1 Installation Guide (All Regions )
RH1 Spec Sheet (CB/CE )
RH1 Spec Sheet (UL/ULC )

part number	Base Type	Power	CRI	CCT	Lumens	IES	Spec Sheet	QTY	Quote
RH1-FIX-125-8-40-VS-WH-110-RU1-TSY-K020-000-A715-FL	FIX	125W	80	4000K	24,844
RH1-FIX-138-8-40-VS-WH-110-RU1-TSY-K020-000-A715-FL	FIX	138W	80	4000K	27,187
RH1-FIX-150-8-40-VS-WH-110-RU1-TSY-K020-000-A715-FL	FIX	150W	80	4000K	28,893
RH1-FIX-125-8-50-VS-WH-110-RU1-TSY-K020-000-A715-FL	FIX	125W	80	5000K	24,844
RH1-FIX-138-8-50-VS-WH-110-RU1-TSY-K020-000-A715-FL	FIX	138W	80	5000K	27,187
RH1-FIX-150-8-50-VS-WH-110-RU1-TSY-K020-000-A715-FL	FIX	150W	80	5000K	28,893

part number	Base Type	Power	CRI	CCT	Lumens	IES	Spec Sheet	QTY	Quote
RH1-FEU-138-8-50-VS-WH-110-RU1-000-K020-000-A0W5-FL	FEU	138W	80	5000K	27,187
