Up to 28,905 Lumens : 10” (254mm) Diameter : Generation 3

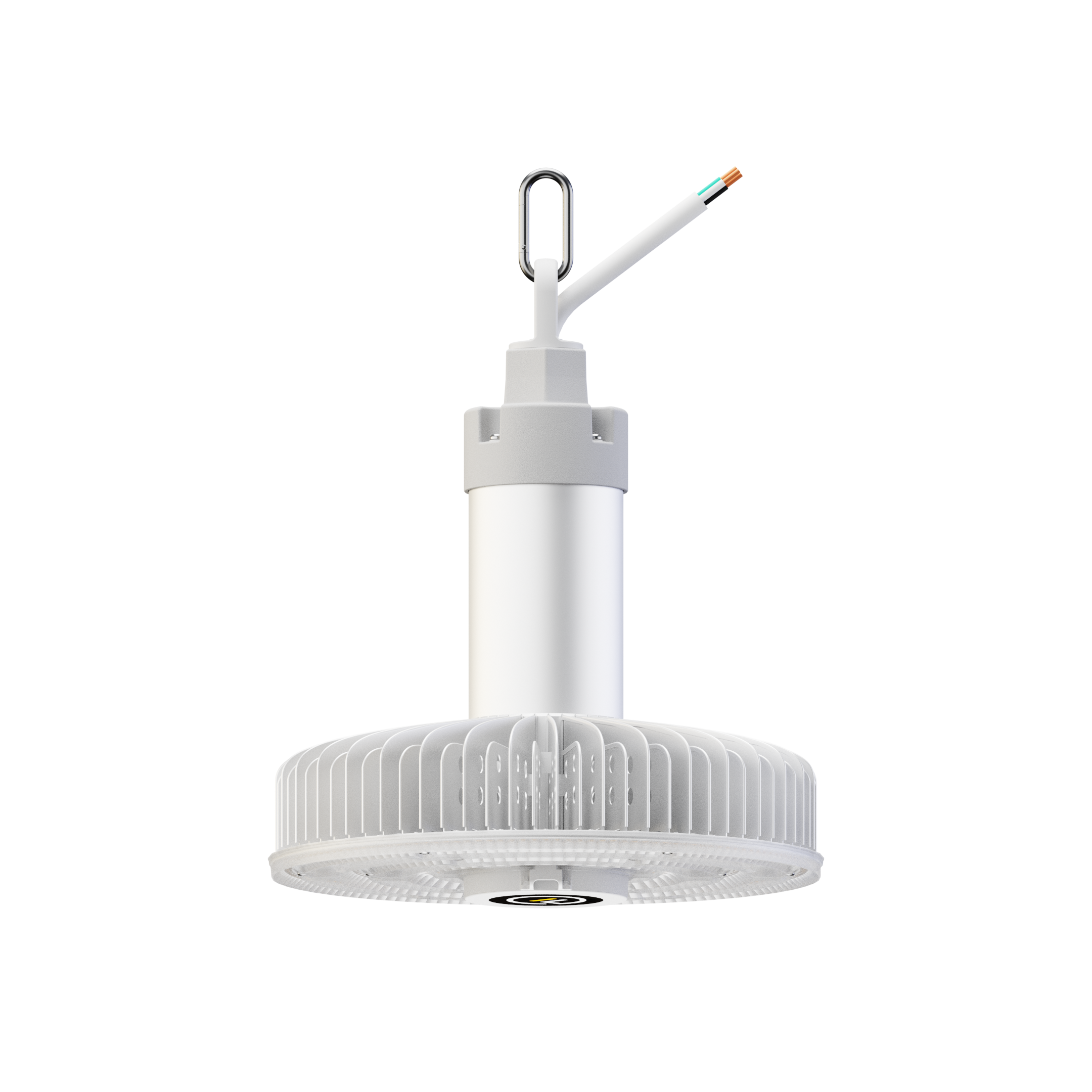

V3M Lamp

Up to 28,905 Lumens, 175 L/W @ 80 CRI
Certified for Magnetic HID Ballast & 100-277 VAC
Low Glare, UGR < 16
80 CRI Standard
Over-temperature protection
Five Year or 50,000 Hour warranty

Mogul Base
Vertical Orientation
3.86 lb / 1.75 kg
Ø 10.48" (266mm) x 13.98" (355mm)
30 cm Safety Harness included

Wireless Options:
- Synpase, Casambi, Avi-On
Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
Dims to 10% then to off

UL/ULC, DLC Standard
IP52 / UL damp listed standard
Integrated/embedded network lighting control Luminaire-level Lighting Control (LLLC)

VH: Hybrid: Ballast Compatible & 100-277 VAC
<1% Flicker
PF > 0.9, THD<20%
Surge: 6 kV (L-N)

	Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
135W	1.35A	1.23A	1.13A	0.61A	0.56A	0.49A
145W	1.45A	1.32A	1.21A	0.66A	0.60A	0.52A
155W	1.55A	1.41A	1.29A	0.70A	0.65A	0.56A
165W	1.65A	1.50A	1.38A	0.75A	0.69A	0.60A

Integrated Patented Optic provides low glare
UGR < 16
Diffusers and uplight accessories sold separately

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	135W	-	-	-	-	24,285	24,285
	145W	-	-	-	-	25,769	25,769
	155W	-	-	-	-	27,230	27,230
	165W	-	-	-	-	28,905	28,905

The Hybrid series is compatible with HID magnetic ballast between 175-600W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with dimming or controls.

	HID Ballast Compatibility
Type	175W	200W	250W	320W	350W	400W	600W
Metal Halide	M57 M137/M152 MH175	-	M138/M153, MH250	M132/M154	M131	M155/M135 M59 MH400	-
HPS	-	S66	S50, NG250	-	-	S51, NG400	S106, NG600
MV	H175	-	-	-	-	-	-

Name	Media
Retrofit Lamp 10" Installation Guide (DLC , UL/ULC USA/Canada )
V3M Lamp Spec Sheet VL - DLC (DLC )
V3M Lamp Spec Sheet VH - USA (UL/ULC USA/Canada )

Ordering Information

part number	Base Type	CRI	CCT	Lumen Range	Power
V3M-X39-135-8-50-VH-AN-B90-000-000-FL	Mogul (E39/E40)	80	5000K	20,000 - 26,000	135W
V3M-X39-145-8-50-VH-AN-B90-000-000-FL	Mogul (E39/E40)	80	5000K	20,000 - 26,000	145W
V3M-X39-155-8-50-VH-AN-B90-000-000-FL	Mogul (E39/E40)	80	5000K	26,000 - 30,000	155W
V3M-X39-165-8-50-VH-AN-B90-000-000-FL	Mogul (E39/E40)	80	5000K	26,000 - 30,000	165W
V3M-X39-135-8-40-VH-AN-B90-000-000-FL	Mogul (E39/E40)	80	4000K	20,000 - 26,000	135W
V3M-X39-145-8-40-VH-AN-B90-000-000-FL	Mogul (E39/E40)	80	4000K	20,000 - 26,000	145W
V3M-X39-155-8-40-VH-AN-B90-000-000-FL	Mogul (E39/E40)	80	4000K	26,000 - 30,000	155W
V3M-X39-165-8-40-VH-AN-B90-000-000-FL	Mogul (E39/E40)	80	4000K	26,000 - 30,000	165W
