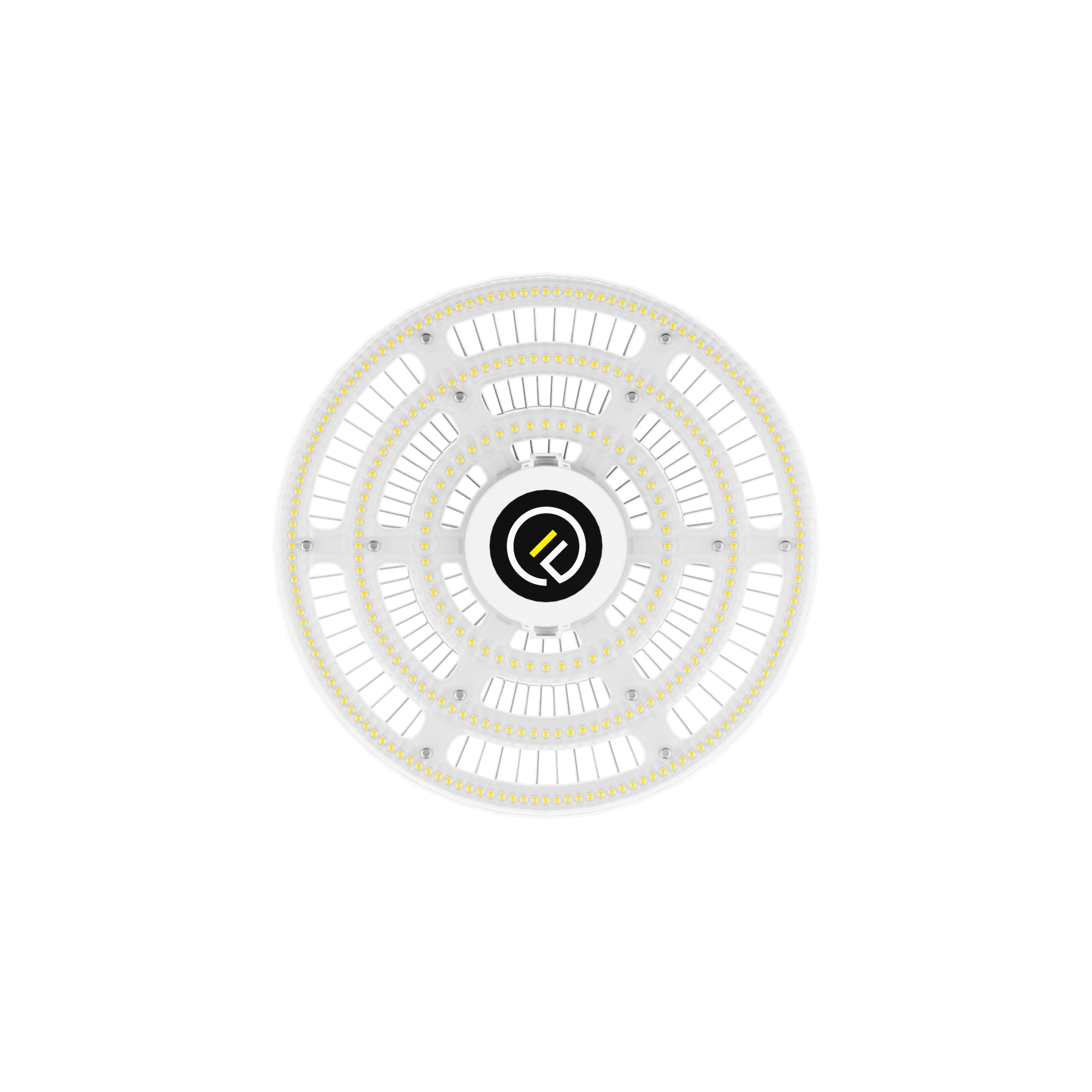

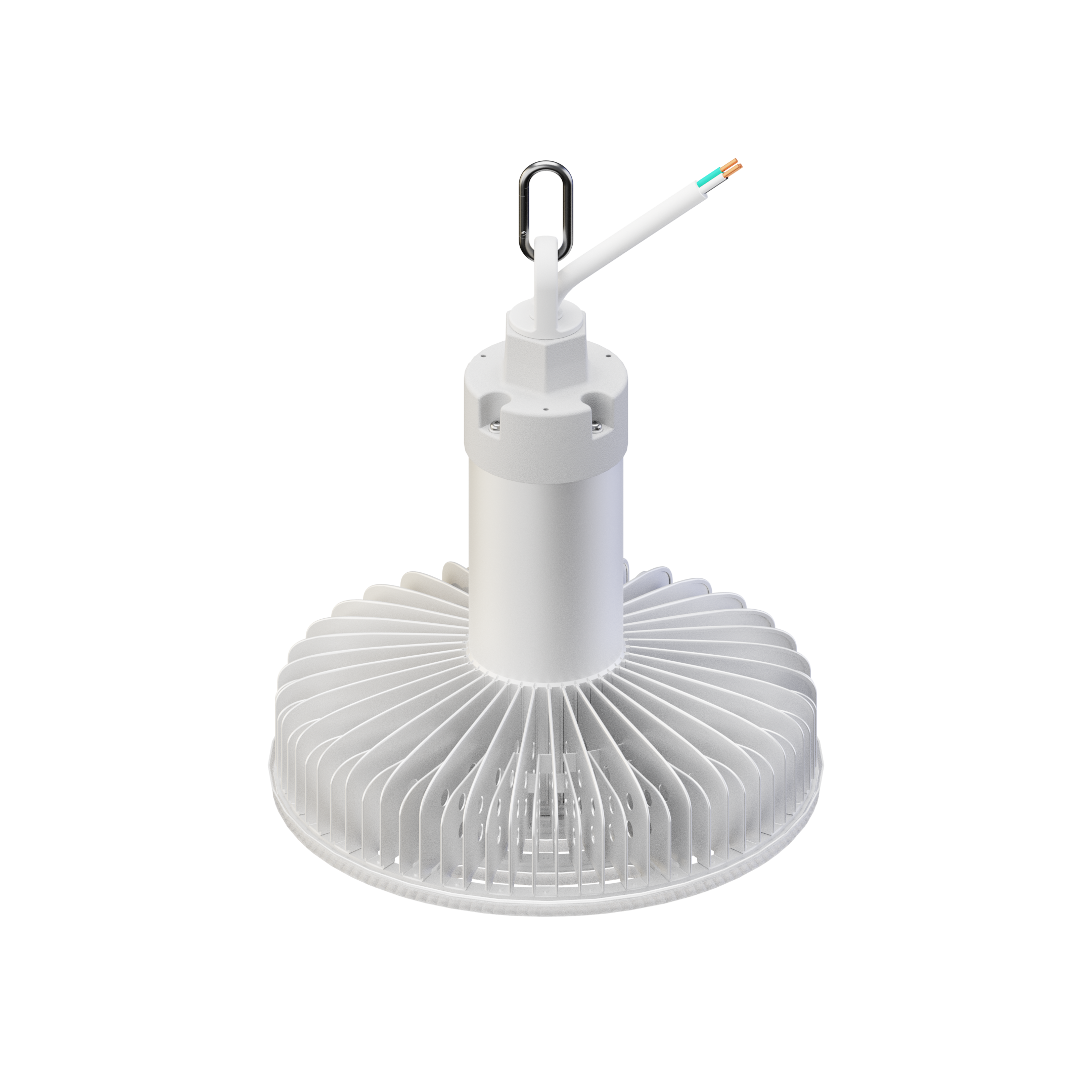

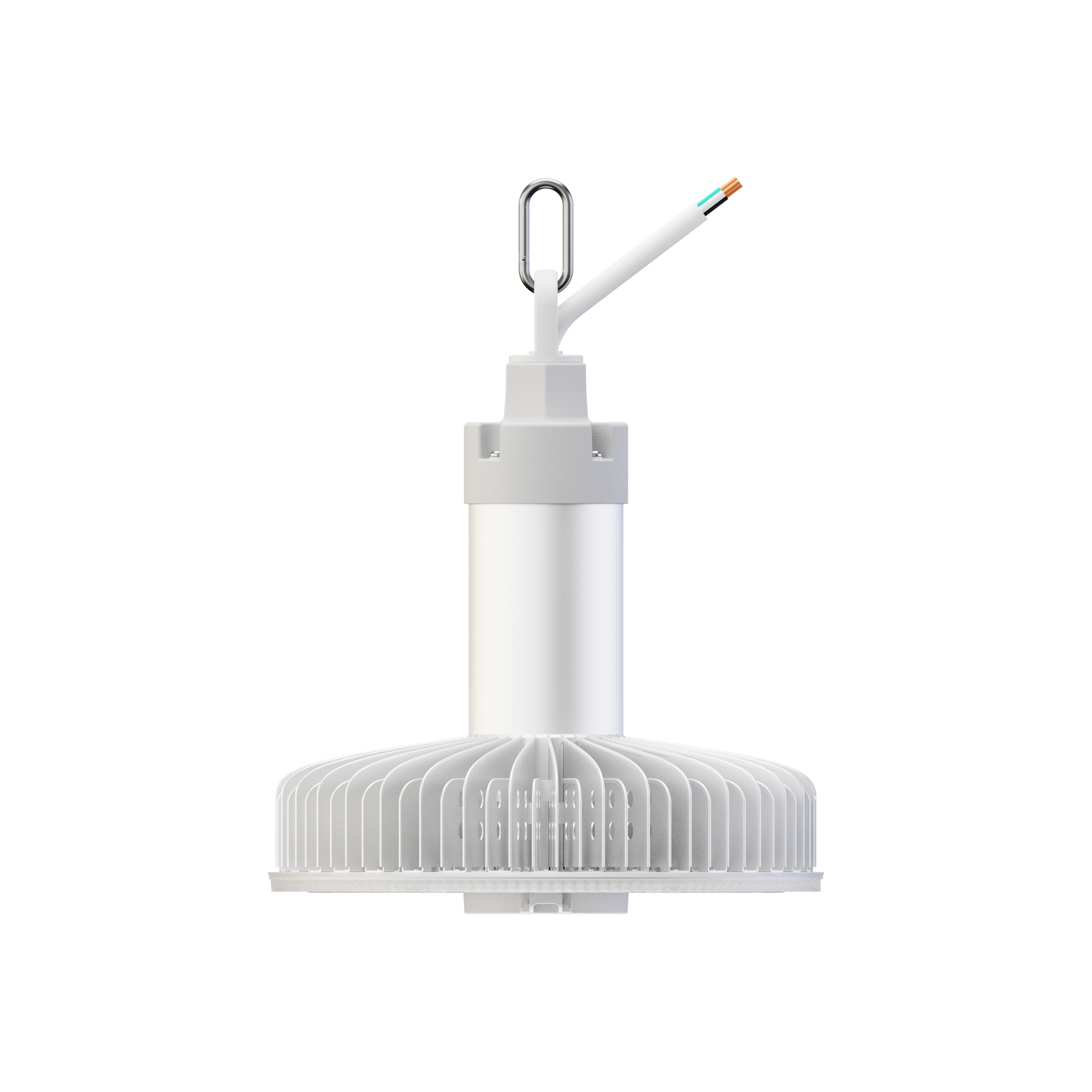

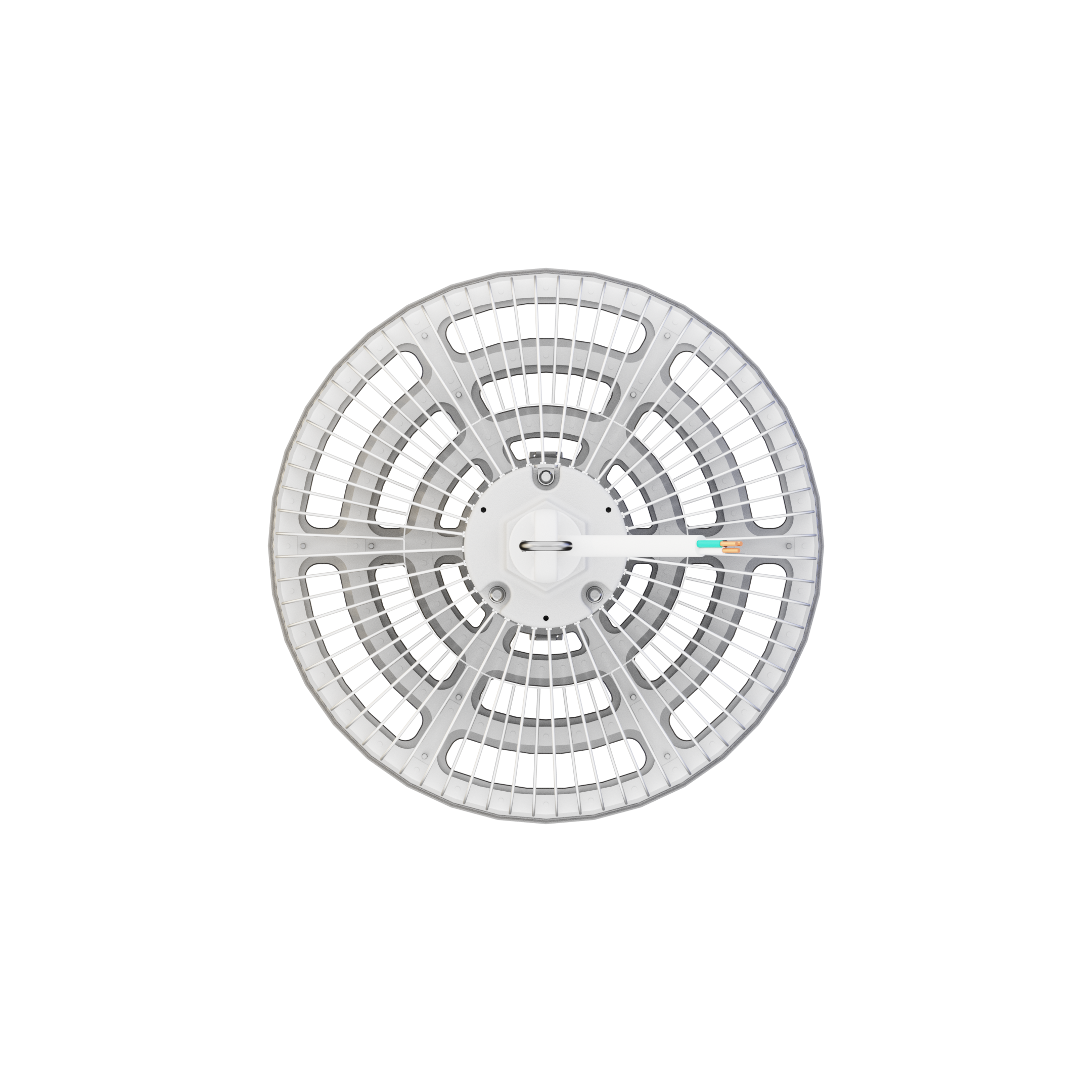

V3M Fixture

Up to 28,905 Lumens : 10” (254mm) Diameter : Generation 3

Applications

High Racks
Warehouse

General

Up to 28,905 Lumens, 175 L/W @ 80 CRI
Low Glare, UGR < 16
80 CRI Standard, High CRI optional
Wireless control options or 0-10V dimming wires
Over-temperature protection
Five Year or 50,000 Hour warranty

World Wide Certifications

UL/ULC, DLC Premium
IP52 / UL damp listed standard
Integrated/embedded networked lighting control Luminaire-level Lighting Control (LLLC)

Control Options

Wireless Options:
- Synapse, Casambi, Avi-On
Non-Wireless Options
- Occupancy & Daylight, Manual Power Set
- Dims to 10% then to off

Mechanical

Vertical Orientation
4.76 lb / 2.16 kg
Ø 10.48" (266 mm) x 13.98" (355 mm)
75cm Safety Harness included

Electrical

VL: 100-277 VAC, 50-60Hz
<1% Flicker
PF > 0.9, THD<20%
Surge: 6 kV (L-N), 10kV (L-G, N-G)

	Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
165W	1.65A	1.50A	1.38A	0.75A	0.69A	0.60A
155W	1.55A	1.41A	1.29A	0.70A	0.65A	0.56A
145W	1.45A	1.32A	1.21A	0.66A	0.60A	0.52A

Integrated Patented Optic provides low glare UGR < 16
External reflector not required
Diffusers and uplight accessories sold separately

No Optical Accessories

Click on Lumens for IES files
CRI	Power	4000K	5000K
80	135W	24,285	24,285
	145W	25,769	25,769
	155W	27,230	27,230
	165W	28,905	28,905

With V10 Uplight 10%

Click on Lumens for IES files
CRI	Power	4000K	5000K
80	135W	23,845	23,845
	145W	25,680	25,680
	155W	26,694	26,694
	165W	28,297	28,297

With UGR Diffuser

Click on Lumens for IES files
CRI	Power	4000K	5000K
80	135W	22,236	22,236
	145W	24,303	24,303
	155W	25,747	25,747
	165W	27,567	27,567

With UGR Diffuser & V10 Uplight 10%

Click on Lumens for IES files
CRI	Power	4000K	5000K
80	135W	21,971	21,971
	145W	23,150	23,150
	155W	24,168	24,168
	165W	26,158	26,158

V3M Fixture Spec Sheet (DLC )

V3M Lamp to Luminaire Conversion Installation Guide (DLC , UL/ULC )

V3M Fixture + Reflector Assembly Installation Guide (DLC )

V3M Fixture Installation Guide (DLC )

P/N	Base	Power	CRI	CCT	Lumens	IES	Spec
	FIX	135W	80	5000K	24,285		-
	FIX	145W	80	5000K	25,769		-
	FIX	155W	80	5000K	27,230		-
	FIX	165W	80	5000K	28,905		-
	FIX	135W	80	4000K	24,285		-
	FIX	145W	80	4000K	25,769		-
	FIX	155W	80	4000K	27,230		-
	FIX	165W	80	4000K	28,905		-
									-
									-
									-
									-
									-
									-
									-
									-
