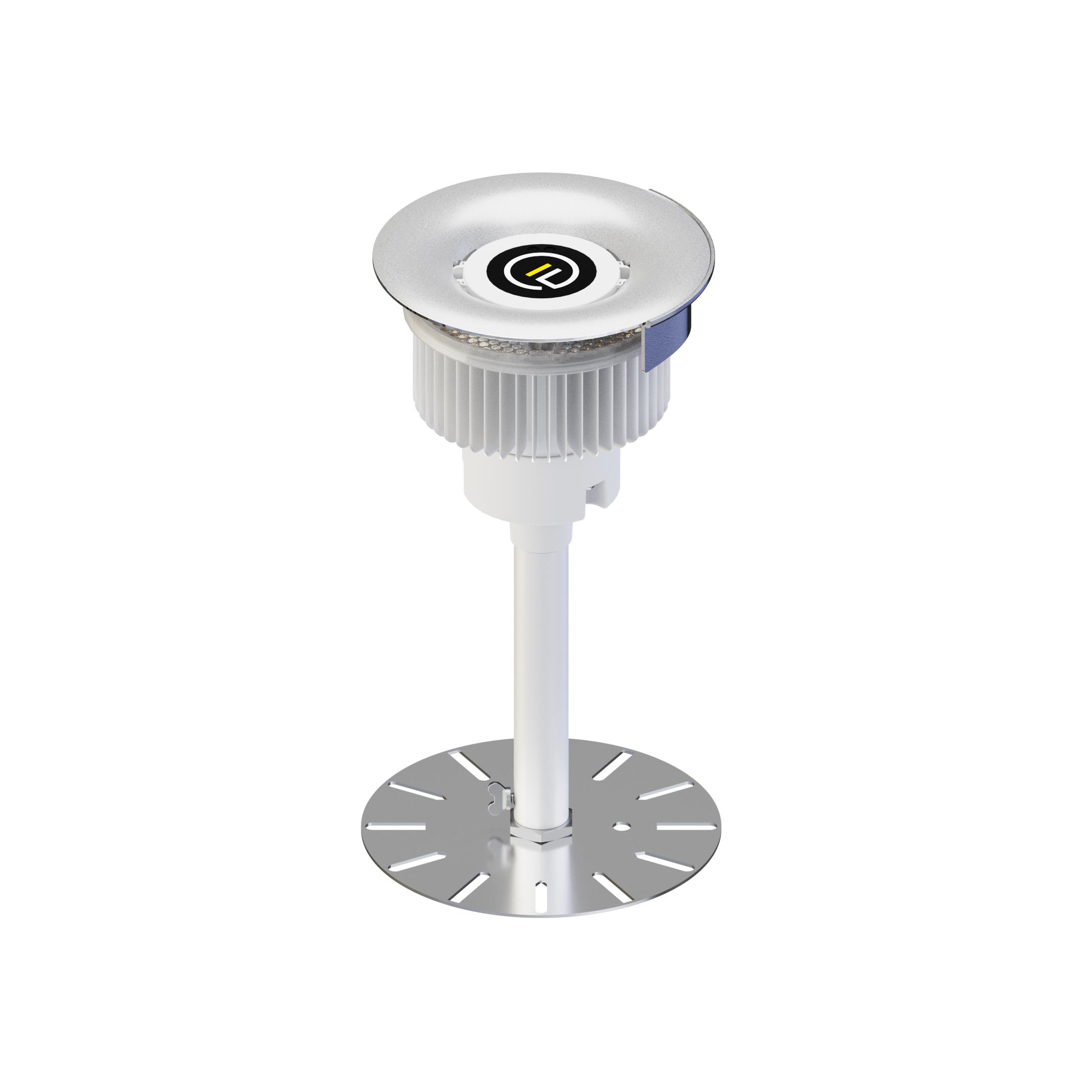

VA6 Post Top Fixture

Up to 7,000 Lumens: 5" (136mm) Diameter

Applications

Park, Street

General

Up to 6,000 Lumens, 133 L/W
100-277 VAC
Integrated Patented Optic provides:
- Low uplight & glare: B2-U3-G2
- 3x cd/lumen higher efficiency over corn lamps
- House side shield option: B1-U3-G1
80 CRI Standard, High CRI optional
Wireless control options
Temperature protection with full output:
- T(Ambient) = 65ºC/150F for 30W
- T(Ambient) = 45ºC/115F for 45W
Enclosed fixture rated
Five Year or 50,000 Hour warranty

World Wide Certifications

UL, DLC, CE, CB, PSE, CCC, SAA, RoHS/REACH for selected models
IP52 / UL Damp Listed
IP65 / UL Wet Listed optional - special order

Control Options

Wireless Options:
- Synpase, Casambi, Avi-On
Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
Dims to 10% then to off
Controls not compatible with ballast operation

Mechanical

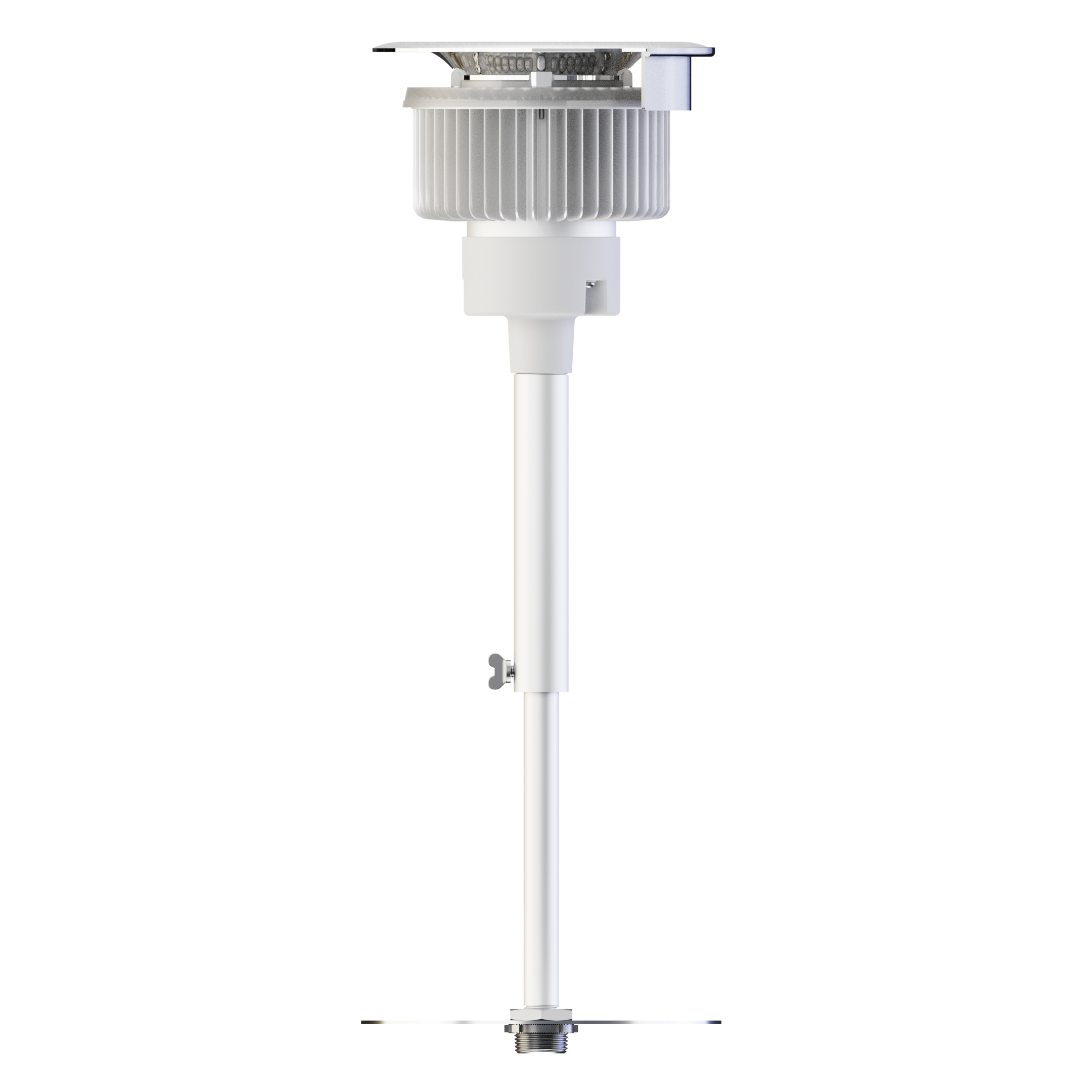

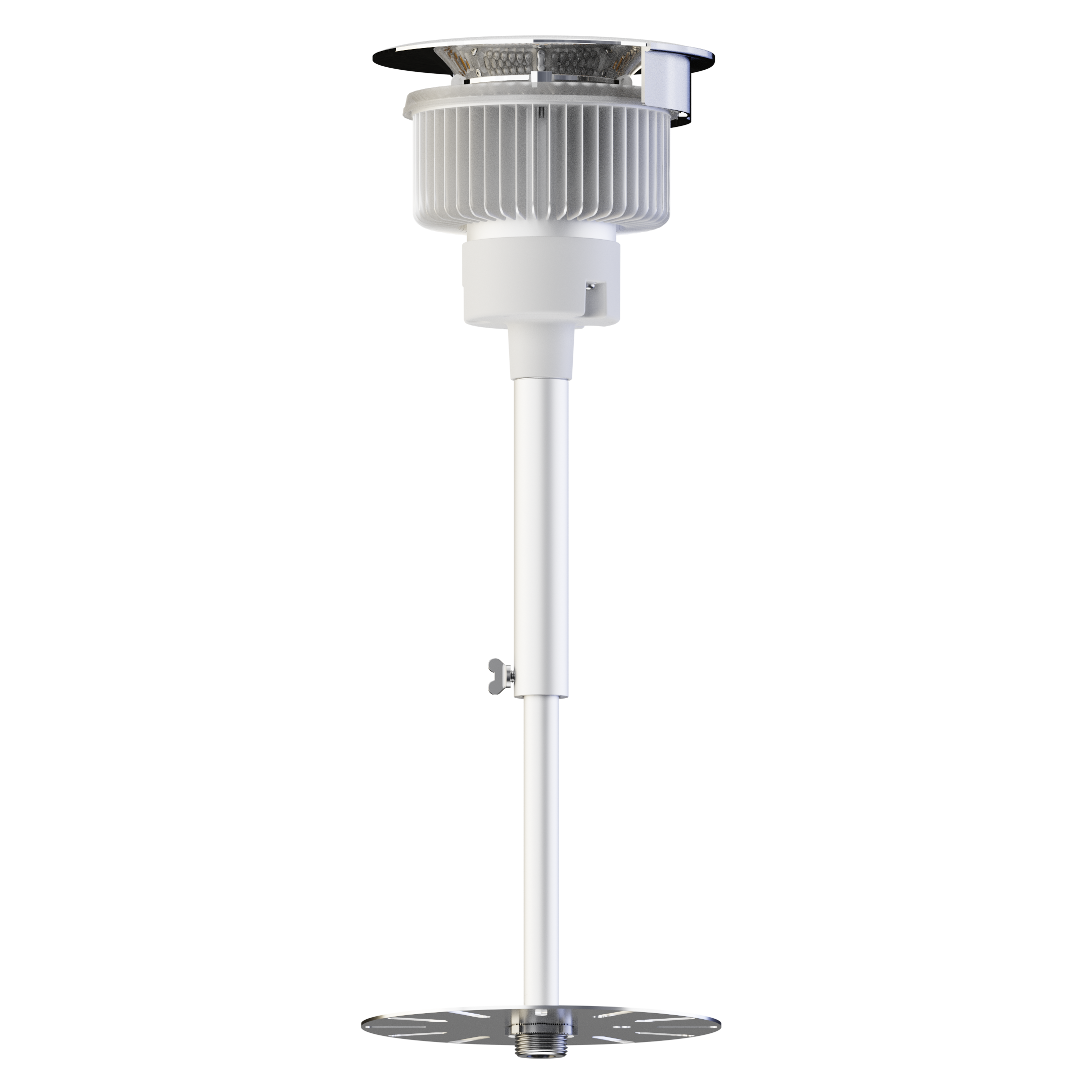

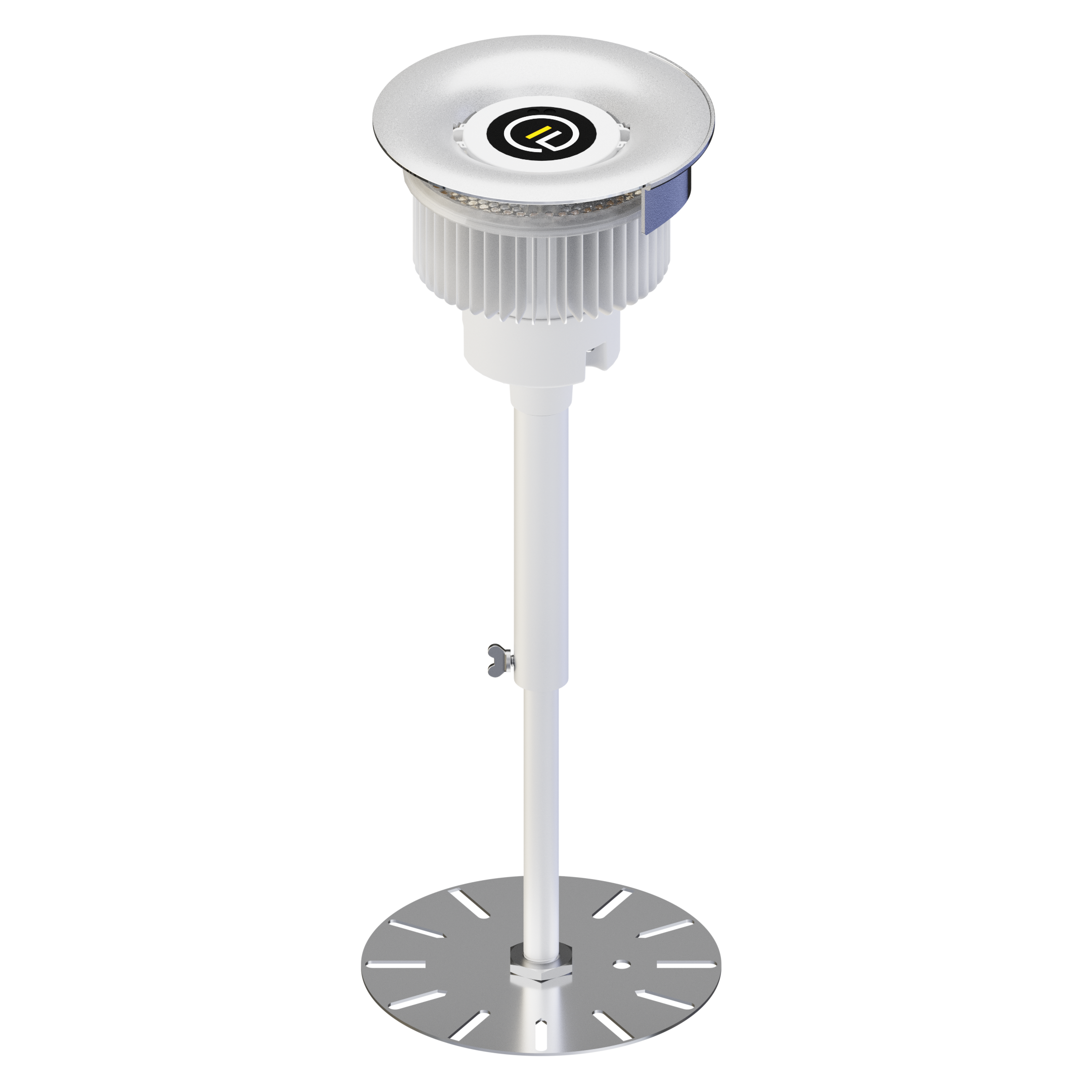

Extendable pole
Beautiful anodized solid aluminum body

Electrical

VL: 100-277 VAC, 50-60Hz
VH: Hybrid: Ballast Compatible & 100-277 VAC
<1% Flicker
PF > 0.9, THD<20%
Surge: 6 kV (L-N)

Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
30W	0.30A	0.27A	0.25A	0.14A	0.13A	0.11A
45W	0.45A	0.41A	0.38A	0.20A	0.19A	0.16A

Ballast Compatibility

The Hybrid series is compatible with HID magnetic ballast between 45-250W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with controls.

HID Ballast Compatibility
Type	45-70W	100W	150W	175W	200W	250W
Metal Halide	M98 M110 M143	M90	-	M57 M137 M152 MH175	-	M138 M153 MH250
HPS	NG50 NG70	NG100	NG150	-	S66	S50 NG250
MV	-	-	-	H175	-	-

Integrated Patented Optic provides:
- B2-U3-G2
- 3x cd/lumen higher efficiency over cor lamps
House side shield option resulting in B1-U3-G1 (Sold separately)

With 5" Post Top Reflector

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	30W	3,247	3,620	3,832	4,001	4,142	4,142
80	45W	4,696	5,236	5,543	5,788	5,992	5,992
90	30W	2,674	2,982	3,156	3,296	3,412	3,412
90	45W	3,869	4,313	4,566	4,768	4,936	4,936

Name	Media
VA6 Post Top Fixture Spec Sheet (All Regions )
VA6 Post Top Fixture Installation Guide (All Regions )

part number	Base Type	Power	CRI	CCT	Lumens	Spec Sheet
VA6-FIX-030-8-22-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	30W	80	2200K	<3,999	-
VA6-FIX-030-8-27-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	30W	80	2700K	<3,999	-
VA6-FIX-030-8-30-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	30W	80	3000K	<3,999	-
VA6-FIX-030-8-35-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	30W	80	3500K	4,000-9,999	-
VA6-FIX-030-8-40-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	30W	80	4000K	4,000-9,999	-
VA6-FIX-030-8-50-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	30W	80	5000K	4,000-9,999	-
VA6-FIX-045-8-22-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	45W	80	2200K	4,000-9,999	-
VA6-FIX-045-8-27-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	45W	80	2700K	4,000-9,999	-
VA6-FIX-045-8-30-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	45W	80	3000K	4,000-9,999	-
VA6-FIX-045-8-35-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	45W	80	3500K	4,000-9,999	-
VA6-FIX-045-8-40-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	45W	80	4000K	4,000-9,999	-
VA6-FIX-045-8-50-VL-AN-B90-PT3-000-T070-000-WIRE-FL	FIX	45W	80	5000K	4,000-9,999	-
