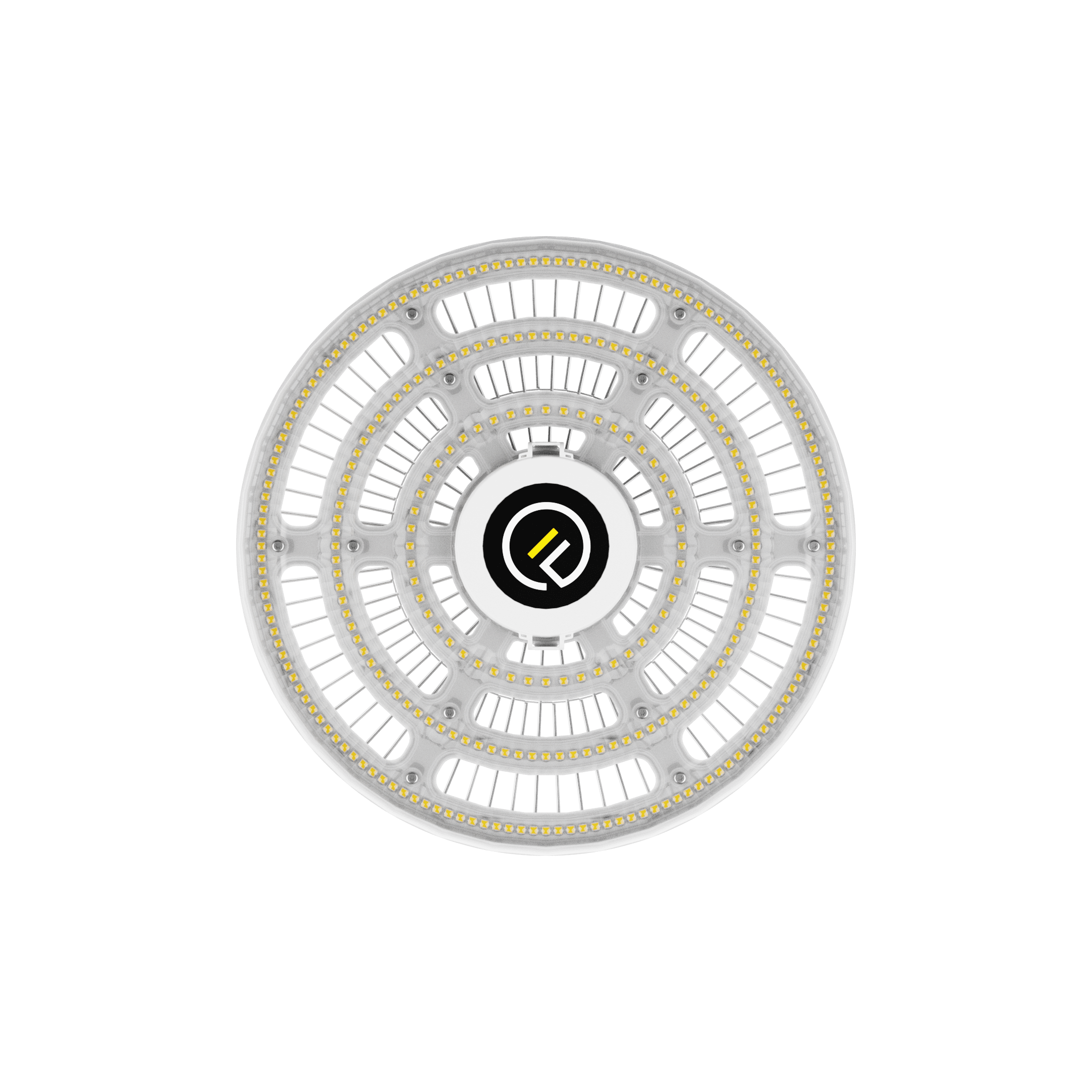

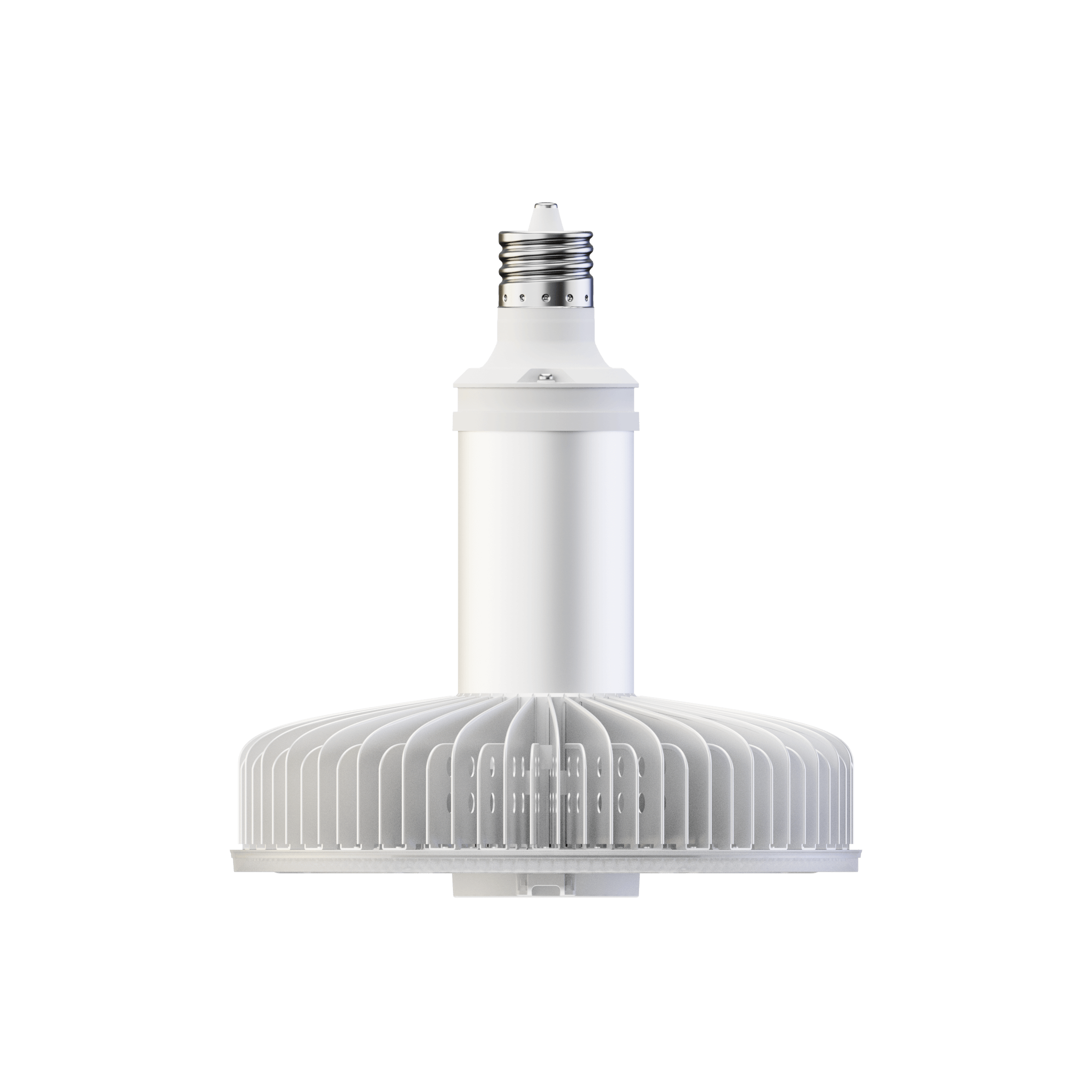

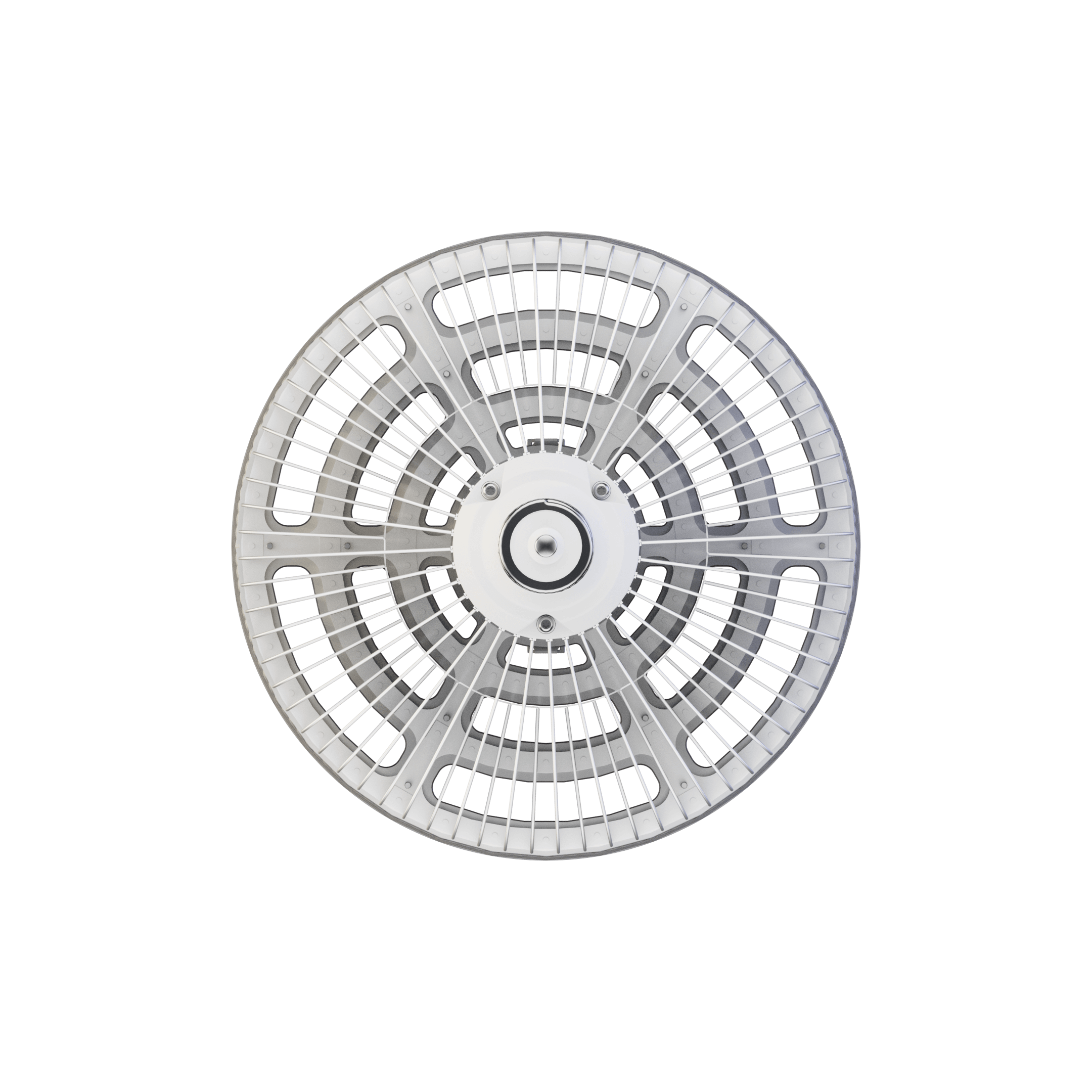

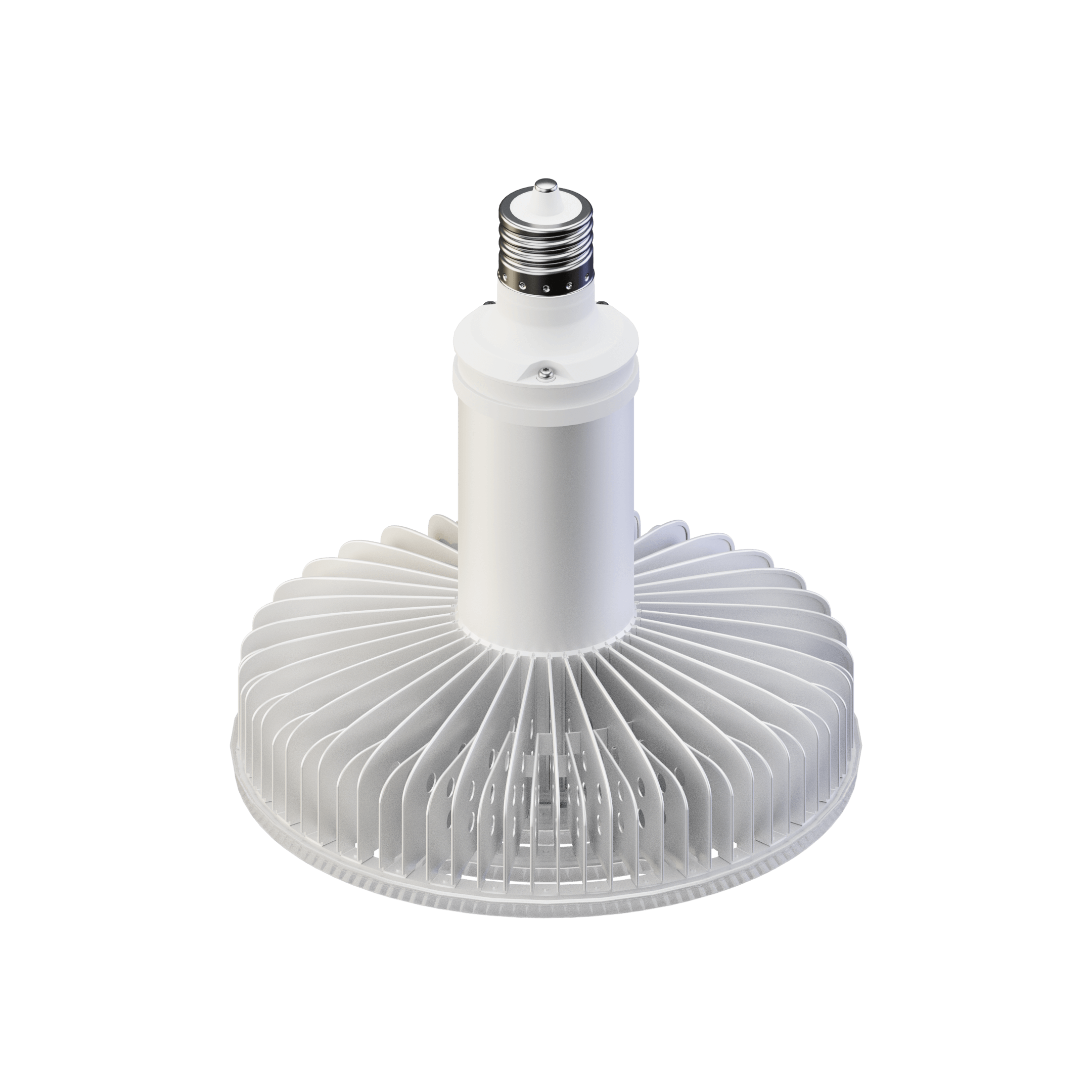

V2L/V2M Lamp

V2M - Up to 25,700 Lumens: 10" (254mm) Diameter

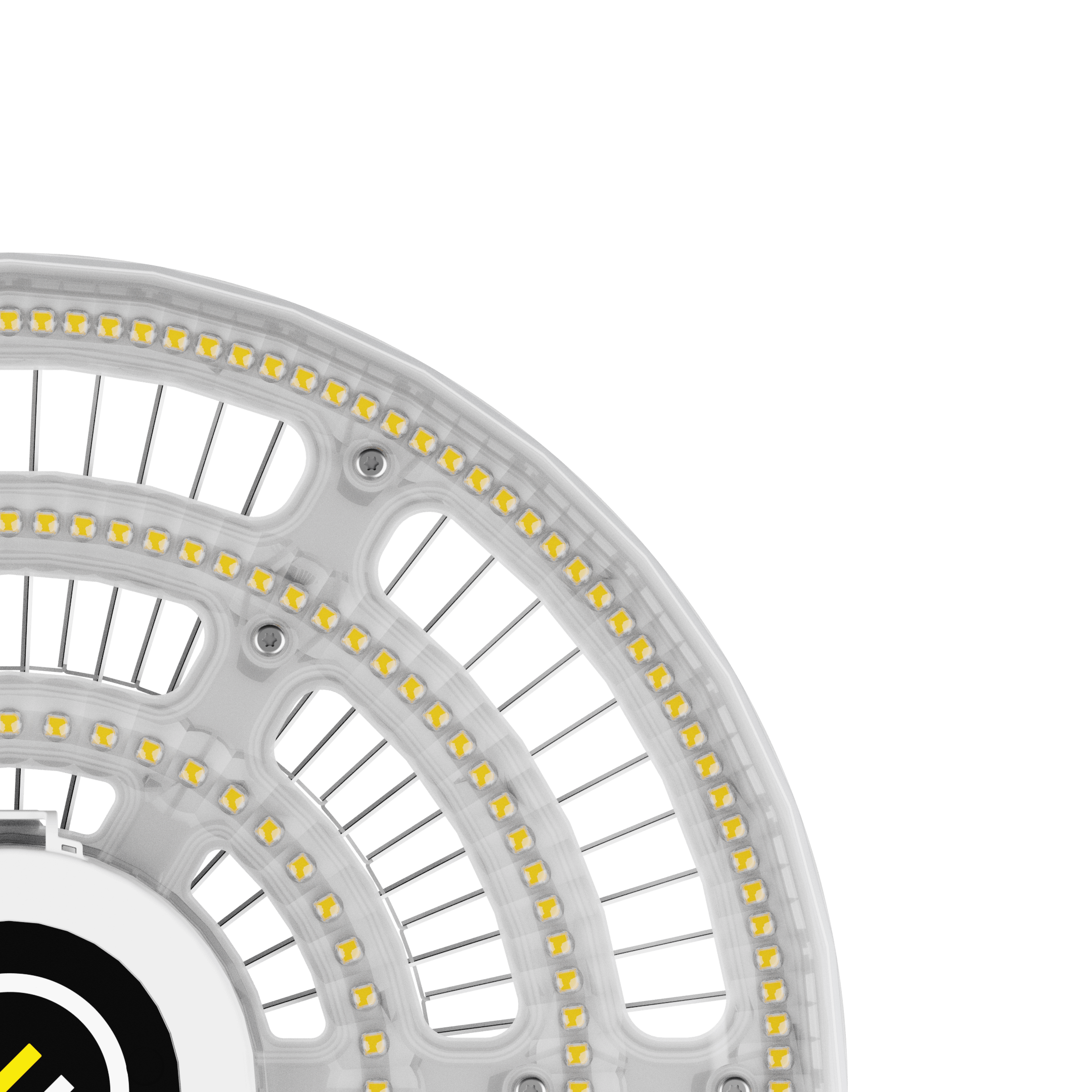

Select V2M 288 LEDs V2L 144 LEDs

Applications

Retail, Warehouse, Manufacturing, Airport, Office

General

Up to 25,700 Lumens, 156 L/W
Certified for Magnetic HID Ballast & 100-277 VAC
Integrated Patented Optic provides:
- Low Glare UGR<18
- 1.3x cd/lumen higher efficiency over no optic
80 CRI Standard, High CRI optional
Wireless control options
Temperature protection with full output:
- T(Ambient) = 55ºC/150F for 105W
- T(Ambient) = 45ºC/115F for 150W
- T(Ambient) = 40ºC/115F for 165W
Enclosed Fixture rated for 105W
Five Year or 50,000 Hour warranty

World Wide Certifications

UL/ULC, CE/CB, PSE, KC, BSMI, NOM certified
DLC Standard Listed SSL qualified
- Not all product variations listed on this page are DLC qualified. Visit https://qpl.designlights.org to confirm qualification
IP52 / UL damp listed standard
IP65 / UL wet optional

Control Options

Wireless Options:
- Synpase, Casambi, Avi-On
Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
Dims to 10% then to off

Mechanical

Anodized solid aluminum body
Mogul Base, vertical orientation only
3.86lb (1.75kg)
Ø 10.48" (266mm) x 11.35" (288mm)

Electrical

VL: 100-277 VAC, 50-60 Hz
VH: Hybrid: Ballast Compatible and 100-277 VAC
< 1% flicker
PF > 0.9, THD<20%
Surge: 6 kV (L-N)

Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
105W	1.05A	0.95A	0.88A	0.48A	0.44A	0.38A
150W	1.50A	1.36A	1.25A	0.68A	0.63A	0.54A
165W	1.65A	1.50A	1.38A	0.75A	0.69A	0.60A

Ballast Compatibility

The Hybrid series is compatible with HID magnetic ballast between 45-250W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with controls.

HID Ballast Compatibility
Type	175W	200W	250W	320W	350W	400W	600W
Metal Halide	M57 M13/M152 MH175	-	M138/M153, MH250	M132/M154	M131	M155/M135 M59 MH400	-
HPS	-	S66	S50, NG250	-	-	S51, NG400	S106, NG600
MV	H175	-	-	-	-	-	-

Integrated Patented Optic provides:
- Low glare with 50º Glare Cutoff, UGR<18
- 1.3x cd/lumen higher efficiency over no optic
- External reflector not required
Diffusers and uplight accessories sold separately

No Optical Accessories

Click on Lumens for IES files
CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	165W	20,119	22,432	23,744	24,796	25,670	25,670
90	165W	16,573	18,478	19,560	20,426	21,146	21,146

With 10" Uplight 15%

Click on Lumens for IES files
CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	165W	19,825	22,103	23,397	24,433	25,294	25,294
90	165W	16,331	18,208	19,273	20,126	20,836	20,836

With 10" UGR Diffuser

Click on Lumens for IES files
CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	165W	18,199	20,291	21,478	22,429	23,220	23,220
90	165W	14,991	16,715	17,693	18,476	19,127	19,127

With 10" K80 Diffuser

Click on Lumens for IES files
CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	165W	17,131	19,100	20,218	21,113	21,857	21,857
90	165W	14,112	15,734	16,654	17,392	18,005	18,005

V2L/V2M Lamp Spec Sheet - NOM (NOM )

V2L/V2M Lamp Spec Sheet - BSMI (BSMI )

V2L/V2M Lamp Spec Sheet - KC (KC )

V2L/V2M Lamp Spec Sheet - PSE (PSE )

V2L/V2M Lamp Spec Sheet - CB/CE (CB/CE )

V2L/V2M Lamp Spec Sheet - DLC (DLC )

V2L/V2M Lamp Spec Sheet - UL (UL/ULC )

V2L/V2M Lamp Installation Guide (All Regions )

Base	Power	CRI	CCT	Lumens
E39	165W	80	3000K	23744
E39	165W	80	3500K	24796
E39	165W	80	4000K	25670
E39	165W	80	5000K	25670
E39	165W	90	2700K	18478
E39	165W	90	3000K	19560
E39	165W	90	3500K	20426
E39	165W	90	4000K	21146
E39	165W	90	5000K	21146
E39	165W	80	2700K	22432

Base	Power	CRI	CCT	Lumens
E39	165W	80	3500K	24796
E39	165W	90	5000K	21146
E39	165W	90	4000K	21146
E39	165W	90	3500K	20426
E39	165W	90	3000K	19560
E39	165W	80	5000K	25670
E39	165W	80	4000K	25670
E39	165W	80	3000K	23744
E39	165W	80	2700K	22432

Base	Power	CRI	CCT	Lumens
E40	165W	90	4000K	21146
E40	165W	90	5000K	21146
E40	165W	90	3500K	20426
E40	165W	90	3000K	19560
E40	165W	90	2700K	18478
E40	165W	80	4000K	25670
E40	165W	80	3500K	24796
E40	165W	80	3000K	23744
E40	165W	80	2700K	22432
E40	165W	80	5000K	25670

Base	Power	CRI	CCT	Lumens
E39	165W	80	2700K	22432
E39	165W	80	3000K	23744
E39	165W	80	3500K	24796
E39	165W	80	4000K	25670
E39	165W	80	5000K	25670
E39	165W	90	2700K	18478
E39	165W	90	3000K	19560
E39	165W	90	3500K	20426
E39	165W	90	4000K	21146
E39	165W	90	5000K	21146

Base	Power	CRI	CCT	Lumens
E39	105W	80	4000K	25670
E39	165W	80	5000K	25670

Base	Power	CRI	CCT	Lumens
E40	165W	80	4000K	25670
E40	165W	80	5000K	25670
E40	165W	80	4000K	25670
E40	165W	80	5000K	25670

Base	Power	CRI	CCT	Lumens
E39	165W	80	2700K	22432
E39	165W	80	3000K	23744
E39	165W	80	3500K	24796
E39	165W	80	4000K	25670
E39	165W	80	5000K	25670
E39	165W	90	2700K	18478
E39	165W	90	3000K	19560
E39	165W	90	3500K	20426
E39	165W	90	4000K	21146
E39	165W	90	5000K	21146
