Up to 28,296 Lumens - Prismatic Clear Polycarbonate 16” Reflector + V3M Fixture

Transcendent Fixture 16”/41cm Prismatic Reflector + V3M Fixture

  • VL: 100-277 VAC, 50-60 Hz
  • < 1% flicker
  • PF > 0.9, THD<20%
  • Surge: 6 kV (L-N), 10kV (L-G, N-G)
  Amps @ Line Voltage (VAC)
  100V 110V 120V 220V 240V 277V
165W 1.65A 1.50A 1.38A 0.75A 0.69A 0.60A
155W 1.55A 1.41A 1.29A 0.70A 0.65A 0.56A
145W 1.45A 1.32A 1.21A 0.66A 0.60A 0.52A
  • Integrated Patented Optic provides:
    • Low glare with 50º Glare Cutoff, UGR<20
  • V10 Uplight 10%, UGR Diffuser, K80 Diffuser options
CRI Power 2700K 3000K 3500K 4000K 5000K
80 165W  -  -  -

26,636

26,636
80 155W  -  -  -

25,038

25,038
80 145W  -  -  -

23,502

23,502



CRI Power 2700K 3000K 3500K 4000K 5000K
80 165W  -  -  -

26,038

26,038
80 155W  -  -  -

24,549

24,549
80 145W  -  -  -

23,035

23,035



Name Media

V3M Fixture + Uplight + Reflector Spec Sheet (UL/ULC USA/Canada )

Configurator

Complete Assembly

Transcendent Fixture 16”/41cm Prismatic Reflector + V3M Fixture
Part Number

TU -PF16-CL1PC1 -000 +V3M-FIX-165-8-40-VL-AN-B90-V10-000-H020-WH1-WIR3-FL

Bill of Material
Category Part Number Product
Lamp/Retrofit V3M-FIX-165-8-40-VL-AN-B90-000-000-H020-WH1-WIR3-FL V3M Fixture Details
Reflector RFL-PF16-CL1PC1 Prismatic Fixture 16" Reflector Details
Lamp Accessory ACC-012-V10-000-FL 10% Uplight Edit
Control Cap CAP-A75-000-WH-FL-FL Blank Cap - No Controls Edit
Reflector Accessory 000 No Reflector Accessory Edit

Lamp/Retrofit

V3M Fixture
Part Number

V3M-FIX-165-8-40-VL-AN-B90-000-000-H020-WH1-WIR3-FL

View Details Selected
This section is not changeable for this product.

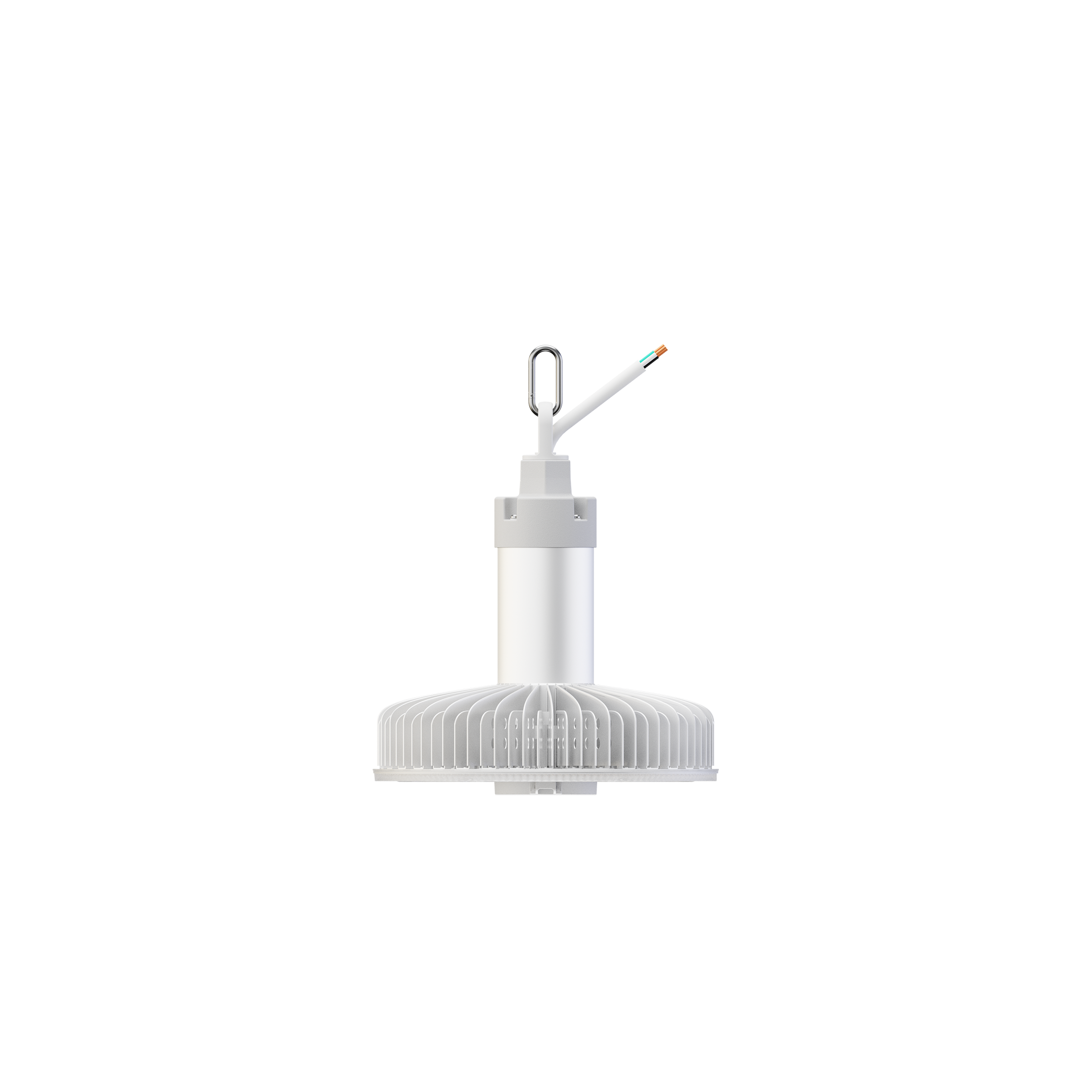

V3M Fixture

Reflector

Prismatic Fixture 16" Reflector
Part Number

RFL-PF16-CL1PC1

View Details Selected
This section is not changeable for this product.

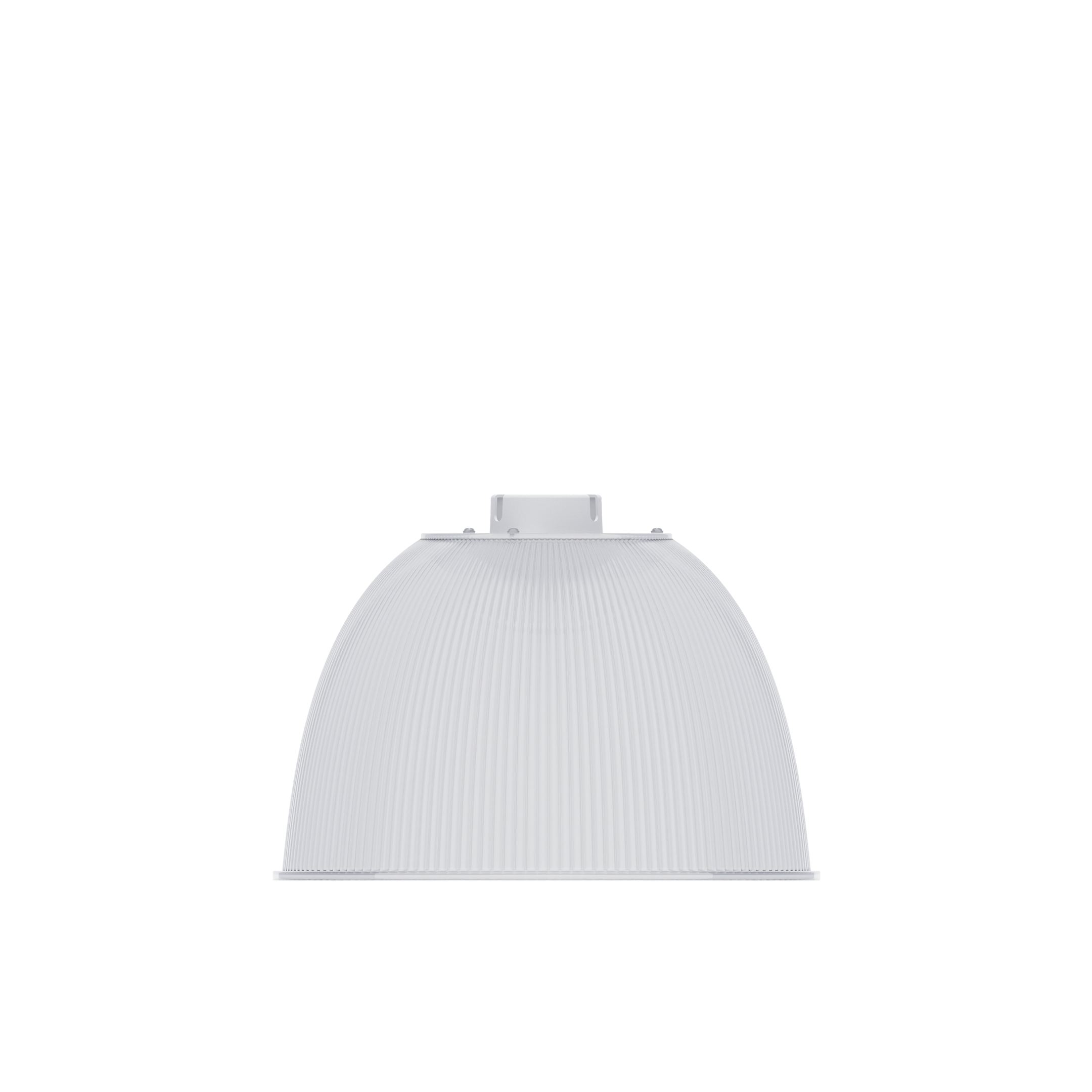

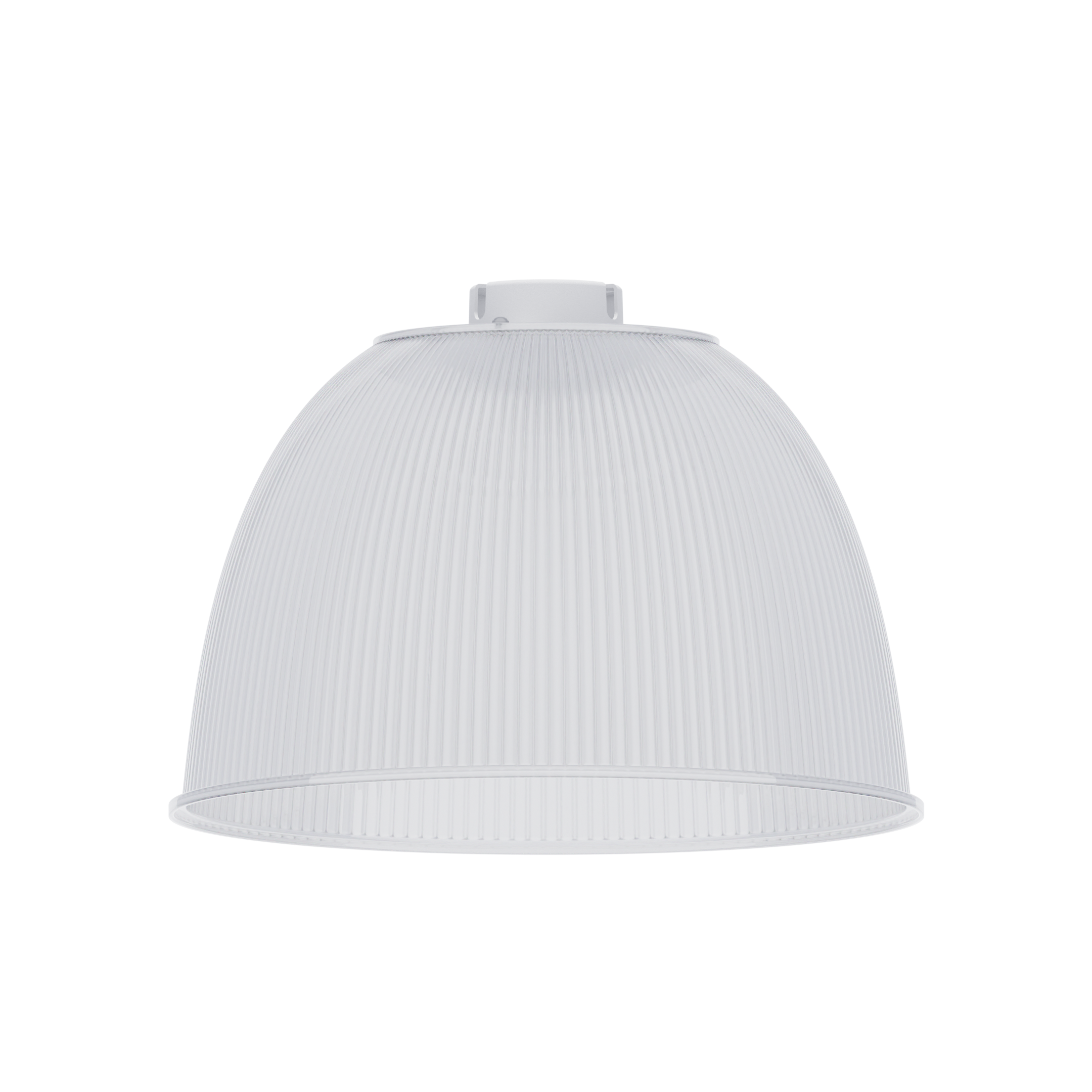

Prismatic Fixture 16" Reflector

Lamp Accessory

10% Uplight
Part Number

ACC-012-V10-000-FL

View Details Selected
Change Selection

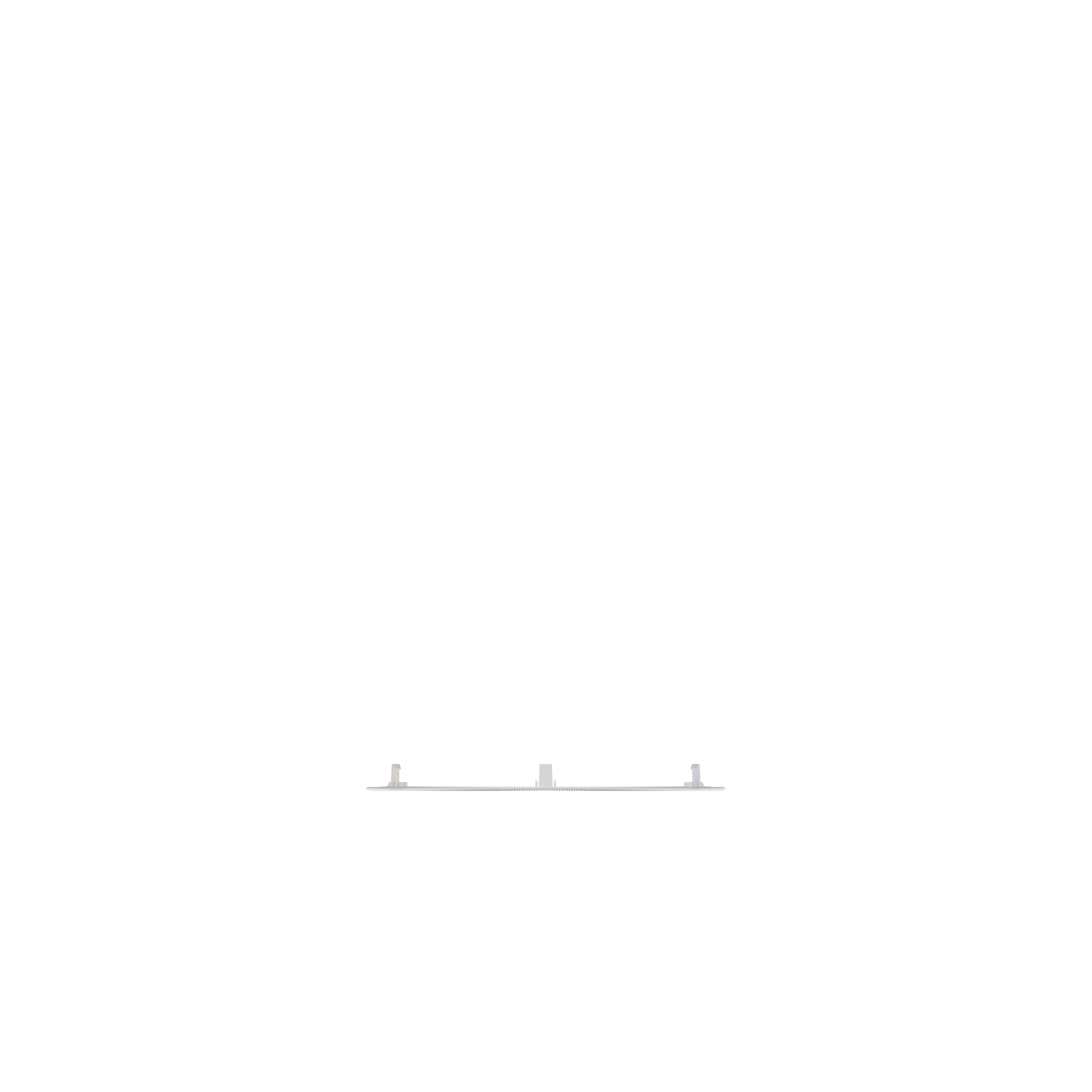

10% Uplight
V2L/V2M UGR Diffuser
No Lamp Accessory
