Up to 26,000 Lumens - Cosmetic Cylinder 13” Reflector + V2l/V2M Lamp

Transcendent Luminaire 13”/33cm Cylinder Reflector + V2L/V2M Lamp

Up to 25,700 Lumens, 156 L/W
Certified for Magnetic HID Ballast & 100-277 VAC
Integrated Patented Optic provides:
- Low Glare UGR<18
- 1.3x cd/lumen higher efficiency over no optic
80 CRI Standard, High CRI optional
Wireless control options
Temperature protection with full output:
- T(Ambient) = 55ºC/150F for 105W
- T(Ambient) = 45ºC/115F for 150W
- T(Ambient) = 40ºC/115F for 165W
Enclosed Fixture rated for 105W
Five Year or 50,000 Hour warranty

VL: 100-277 VAC, 50-60 Hz
VH: Hybrid: Ballast Compatible and 100-277 VAC
< 1% flicker
PF > 0.9, THD<20%
Surge: 6 kV (L-N)

	Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
105W	1.05A	0.95A	0.88A	0.48A	0.44A	0.38A
150W	1.50A	1.36A	1.25A	0.68A	0.63A	0.54A
165W	1.65A	1.50A	1.38A	0.75A	0.69A	0.60A

Integrated Patented Optic provides:
- Low glare with 50º Glare Cutoff, UGR<18
- 1.3x cd/lumen higher efficiency over no optic
- External reflector not required
Diffusers and uplight accessories sold seperately

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	105W	12,704	14,165	14,994	15,657	16,210	16,210
	150W	16,838	18,774	19,872	20,752	21,484	21,484
	165W	19,573	21,823	23,100	24,122	24,973	24,973
90	105W	10,465	11,668	12,351	12,897	13,353	13,353
	150W	13,871	15,465	16,370	17,095	17,697	17,697
	165W	16,123	17,977	19,028	19,871	20,572	20,572

The Hybrid series is compatible with HID magnetic ballast between 45-250W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with controls.

	HID Ballast Compatibility
Type	175W	200W	250W	320W	350W	400W	600W
Metal Halide	M57 M13/M152 MH175	-	M138/M153, MH250	M132/M154	M131	M155/M135 M59 MH400	-
HPS	-	S66	S50, NG250	-	-	S51, NG400	S106, NG600
MV	H175	-	-	-	-	-	-

Name	Media
Transcendent 13" Cylinder + V2L/V2M Lamp Spec Sheet (UL/ULC USA/Canada , DLC , CB/CE Europe and Rest of the World , PSE Japan , NOM Mexico , KC Korea , BSMI Taiwan )
ADP Mounting Base to Reflector Installation Guide (All Regions)
Transcendent Cylinder 13" Luminaire Installation Video (All Regions)

Configurator

Complete Assembly

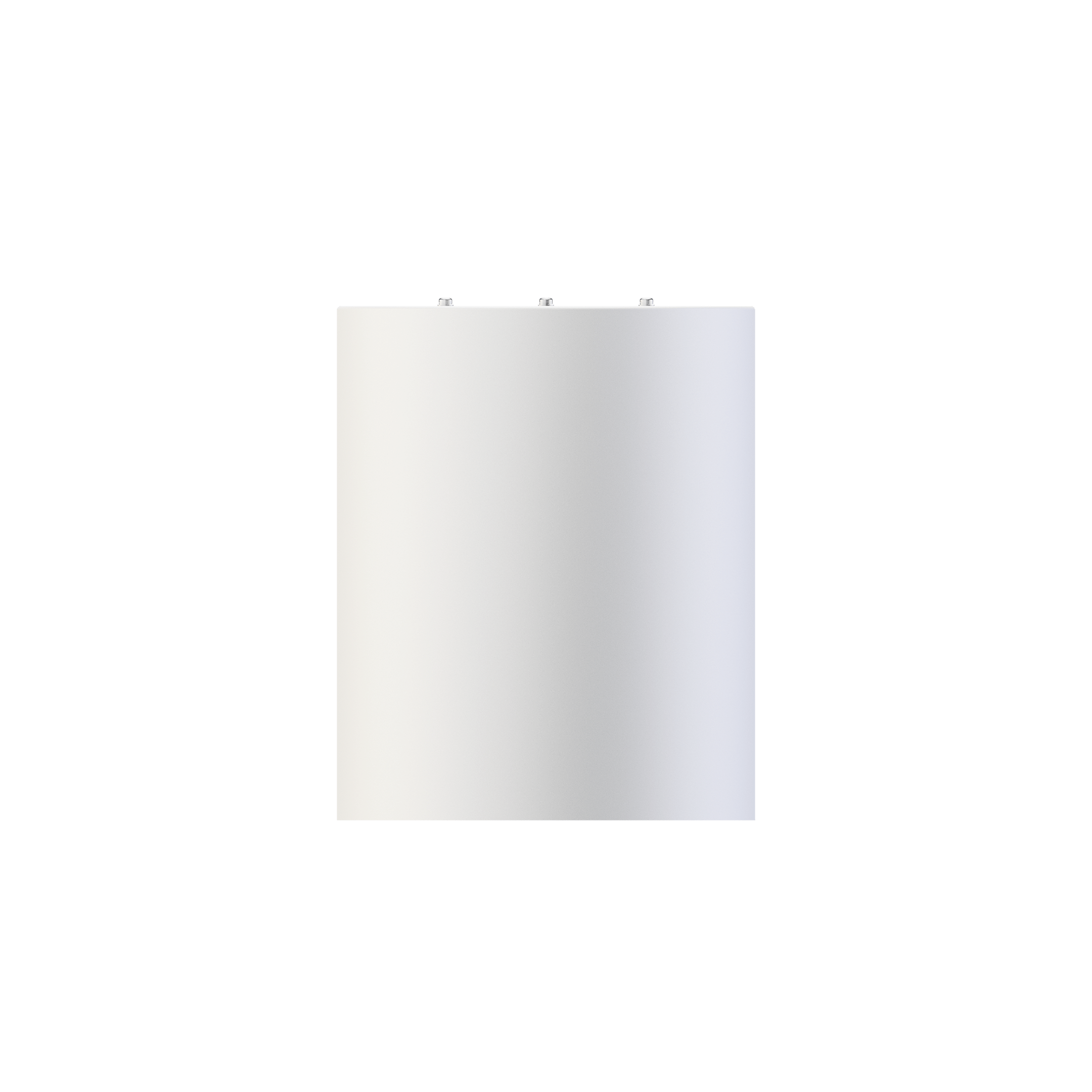

Transcendent Luminaire 13”/33cm Cylinder Reflector + V2L/V2M Lamp

Part Number

TU -CY13-WH2BK2 -A020-WH1-WIRE +V2M-X39-165-8-27-VH-AN-B90-000-000-FL

Bill of Material

Category	Part Number	Product

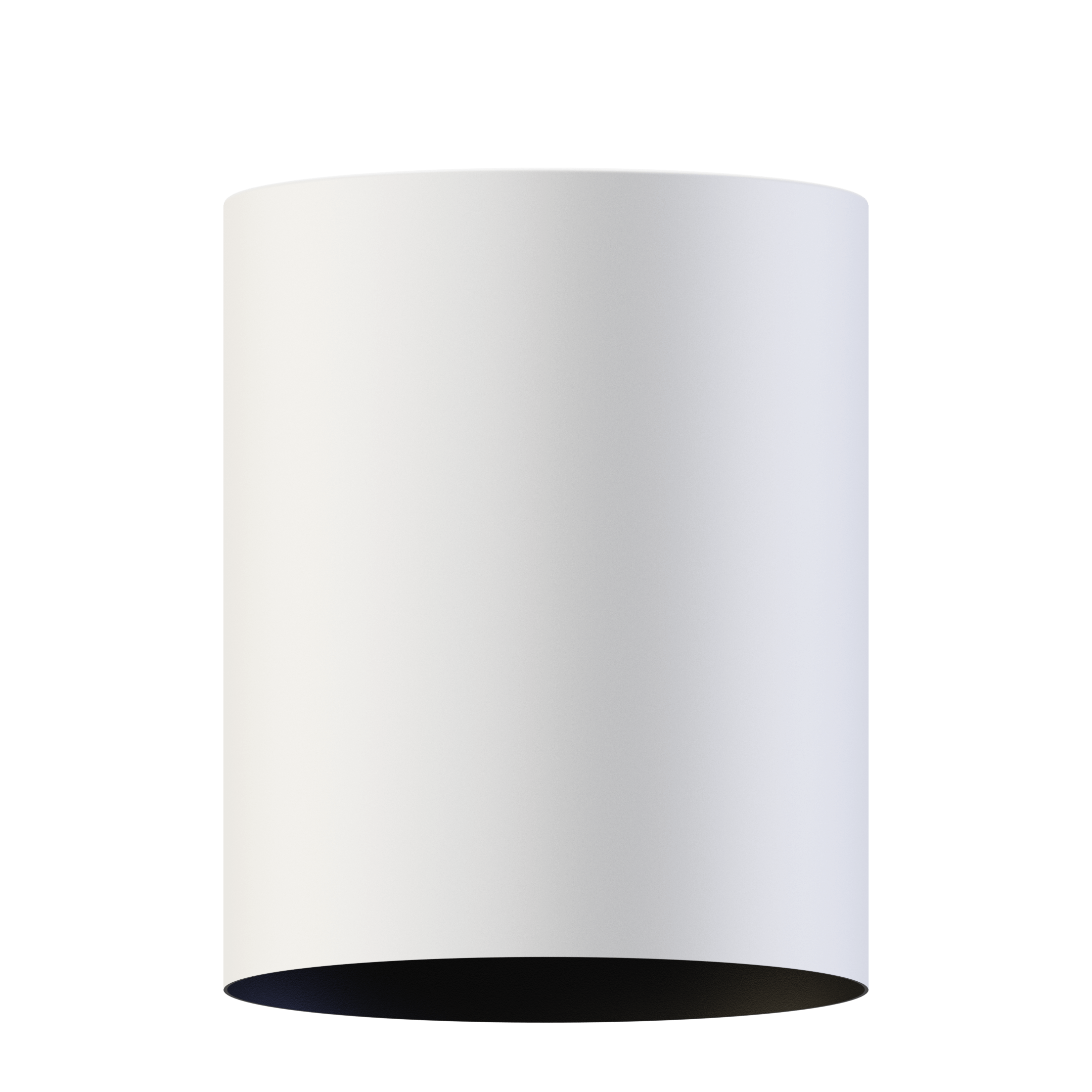

Reflector	RFL-CY13-WH2BK2	Cylinder 13"/33mm White/Black Reflector	Edit

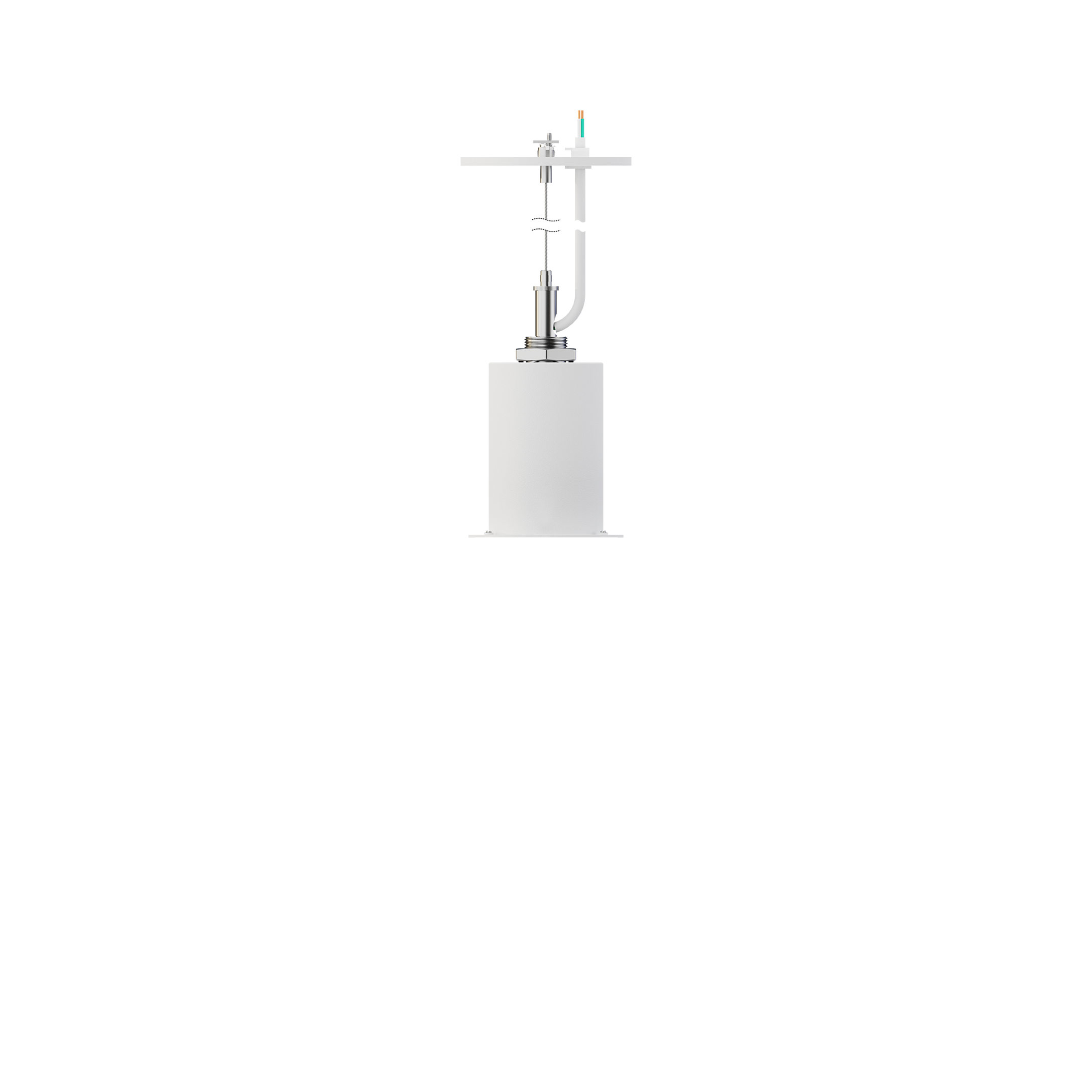

Mounting Base	ADP-E39-AC2-20-WIRE-0300-000-000-FL	ADP Base Aircraft Cable Mount - White	Edit
Lamp/Retrofit	V2M-X39-165-8-27-VH-AN-B90-000-000-FL	V2M Lamp Mogul Base	Edit
Control Cap	CAP-A75-000-WH-FL-FL	Blank Cap - No Controls	Edit
